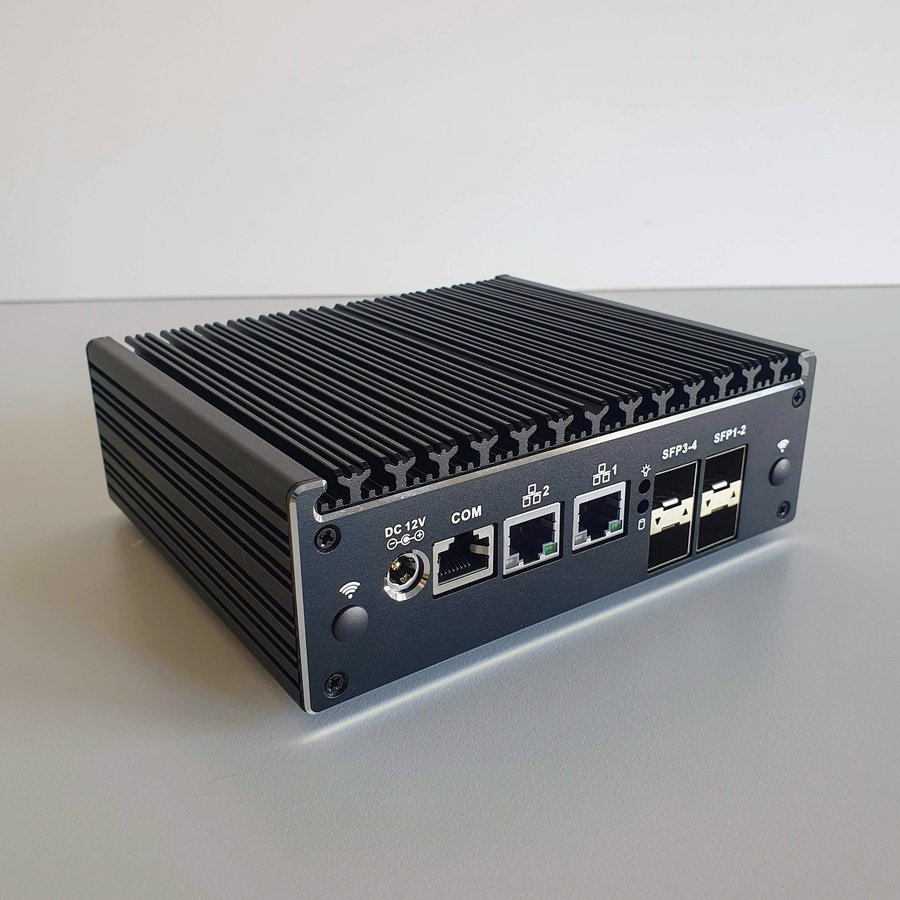

TLSense 2980U: 4x SFP, 2x Gigabit LAN, Celeron 2980U, 16GB SSD, 4GB RAM
- 4x SFP Gbps ports, 2x regular Gbps ports
- 4-8GB RAM, 16-512GB SSD
1 981 SEK
(2 476,25 incl. SE 25% VAT)
Product is currently out of stock.
This router is intended primarily for customers needing multiple SFP ports.
Routing performance is better than APU. It routes full gigabit on pfSense and OPNsense without any configuration tweaks. Not intended for OpenVPN. If you are planning to build a high-performance VPN gateway, consider the full-size TLSense routers.
Included in the box
- 1 x router
- 1 x Power adapter (12V, 4A) - EU cable.
- 1 x VESA mount (can be used to mount the router to a wall)
Tips:
- There's a SATA port on the motherboard and a bracket for mounting 2.5'' drives inside the chassis. See photo.
- Use the HDMI port to enter into BIOS. (press F11 at boot)
Comparison to other models offered in the store
- The overall CPU performance is similar to TLsense J3060. The single-core performance is much better (good for routing).
- Better routing performance than APU - full gigabit in pfSense/OPNsense without configuration tweaks.
- Much slower OpenVPN performance than full-size TLSense routers (only relevant if you plan to run OpenVPN client on it)
- This model does not work with WiFi cards offered in the store. (no PCI interface).
- Memory can be extended to 8GB (APU supports up to 4GB)
| Processor system | |
|---|---|
| CPU | Intel Celeron 2980U @ 1.60GHz |
| AES-NI | Not supported |
| Graphics card | ntel® HD Graphics |
| Graphics ports | VGA port |
| Memory type | DDR3 (max 8GB) |
| Memory slots | 1 |
| Network | |
|---|---|
| Ethernet ports | 6 |
| Ethernet speed | 1 Gbps |
| Ethernet chipset | 2x i211-AT, 4x i350 |
| I350 for SFP cages. i211-AT for copper LAN | |
| Storage | |
|---|---|
| Primary storage | mSATA - up to 512GB |
| 2nd storage | 2.5'' SATA SSD |
| 3rd storage | external USB |
| Serial connection | |
|---|---|
| Serial port | 1x RJ45 serial port |
| External ports | |
|---|---|
| External I/O | 2x USB 3.0, 2x USB 2.0, VGA, power button, DC socket, RJ45 COM, 2x LAN, 4x SFP |
| Internal I/O ports | |
|---|---|
| Internal I/O | SATA, mPCIe with USB and PCI (for 4G or WiFi), SIM slot, 1 memory slot, 1 mSATA |
| LTE/4G option | |
|---|---|
| Sim slot | 1 |
| LTE option | yes |
| WiFi option | |
|---|---|
| Wi-Fi option | Yes |
| One mPCIe slot with PCI interface. Works with wle200nx and wle600vx | |
| Power | |
|---|---|
| CPU TDP | 15 |
| Power Adapter | 12V |
| OS Support | |
|---|---|
| Supported operating systems | pfSense® CE, OPNSense, OpenWRT and all other router systems are supported |
| Mechanical | |
|---|---|
| Dimensions | 148 x 126 x 49mm |
| Mounting option | VESA mount, included. |
| Cooling | Passively cooled |
| BIOS | |
|---|---|
| BIOS | AMI BIOS |
| Warranty | |
|---|---|
| Warranty | 24 months |
| Accessories and peripherals | |
|---|---|
| Included Accessories | 1 x router 1 x Power adapter (12V, 4A) 1 x Power cord 1 x VESA mount (can be used to mount the router to a wall) 1 x SATA cable |
| Other | |
|---|---|
| Manufacturer | Yling |
| gross weight | 1.000 |
