TSW114

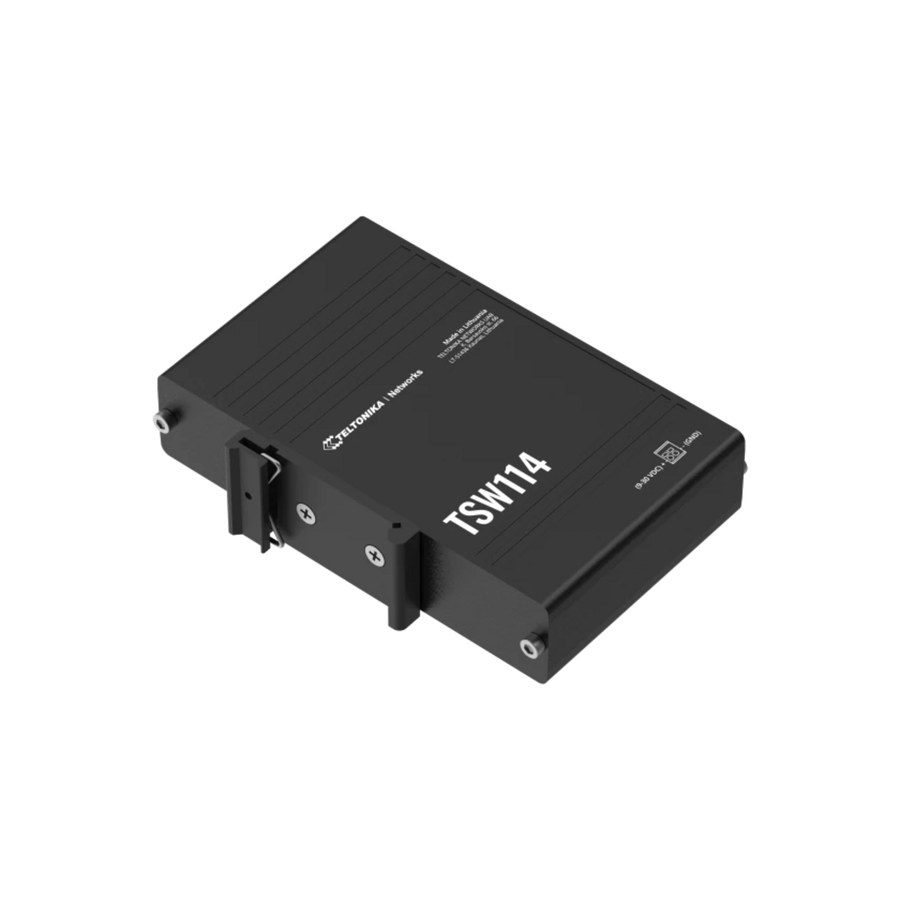

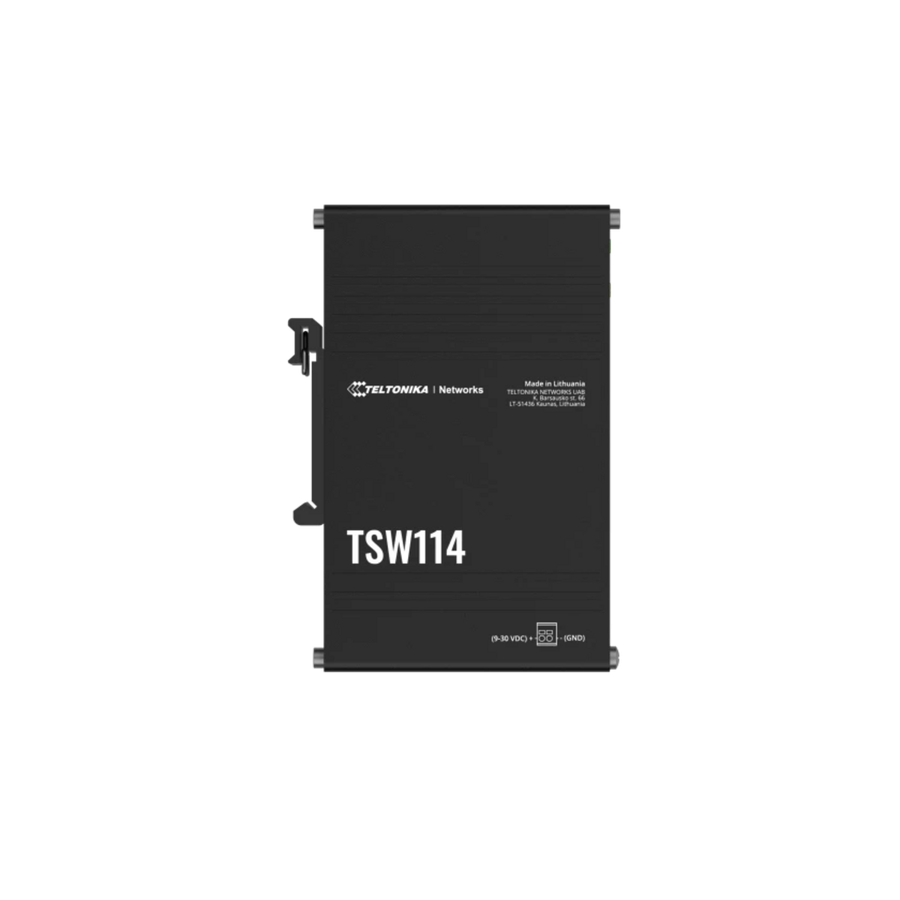

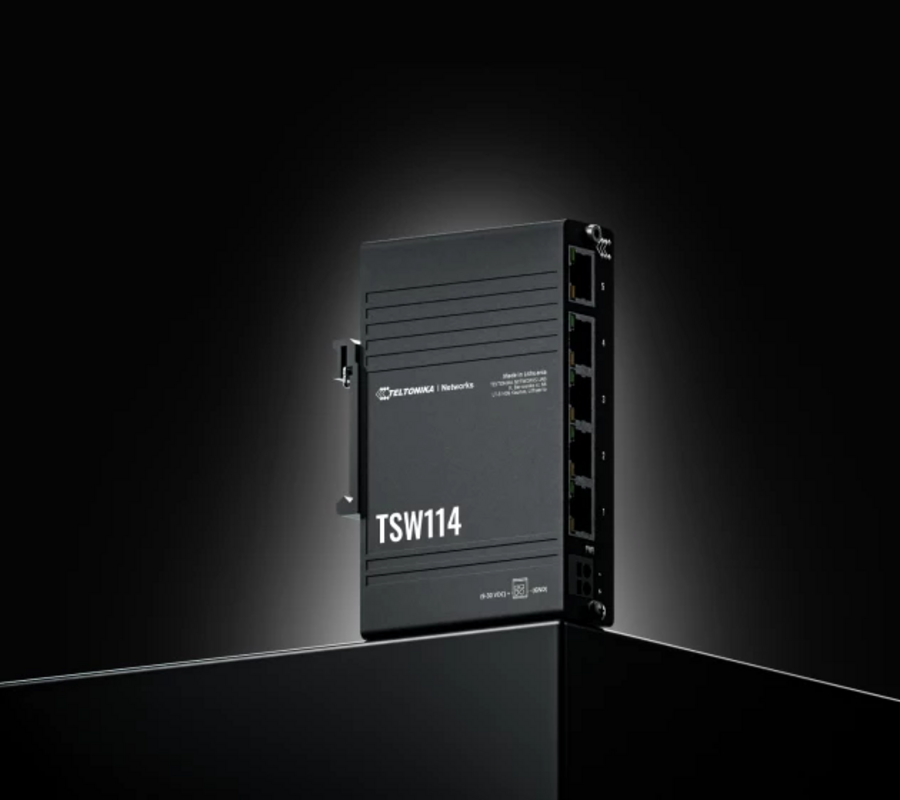

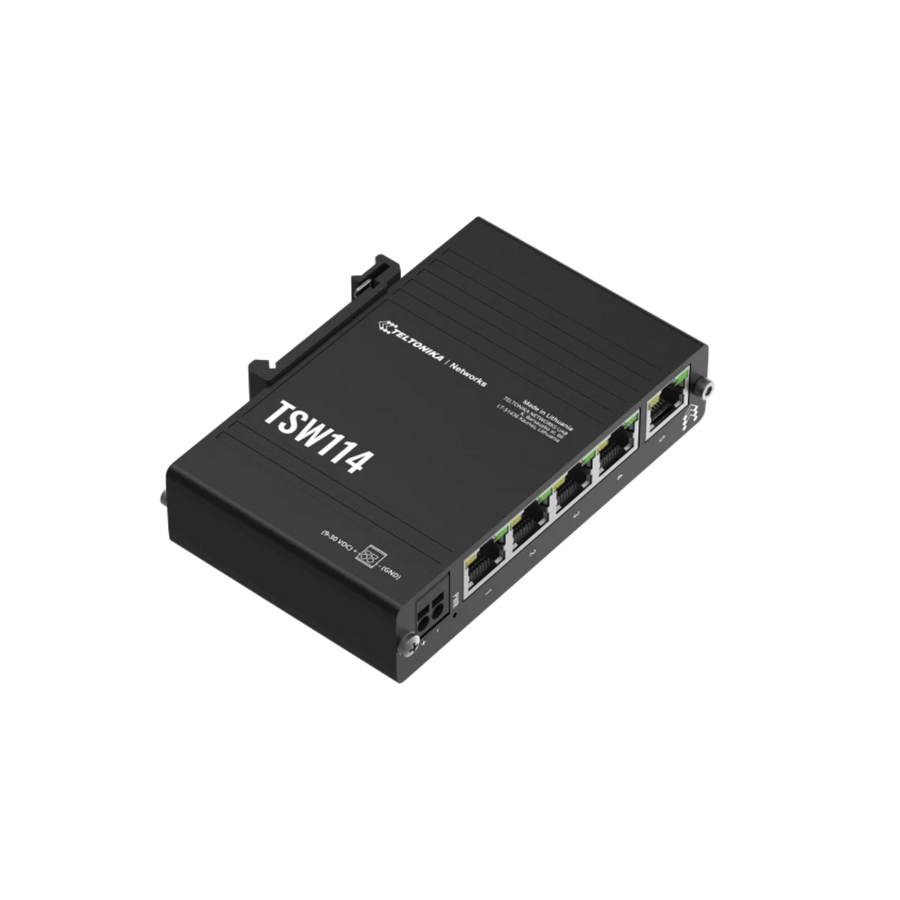

TSW114 5-Port Unmanaged, Industrial switch, without external power adapter

  • Simple plug-and-play, unmanaged gigabit switch
  • 5x Gigabit Ethernet ports
  • DIN-rail bracket
  • Passive POE support

592 SEK

(740 incl. SE 25% VAT)
592 SEK 2099-01-01

TSW114 is an affordable way to simplify your connectivity with its plug-and-play nature and 5 x Gigabit Ethernet ports that provide stable and reliable connectivity for high-bandwidth solutions. The switch has front-facing ports and an integrated DIN rail bracket to enable easy installation across many industrial environments.

This switch can be powered in 3 different ways:

  1. Passive POE using the first network port. (use passive POE injector)
  2. External 2-pin industrial power adapter.
Switch type
Switch type 5-Port Unmanaged, industrial switch.
IEEE 802.3 series standards 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Network Ports
Ethernet ports 5
Ethernet speed 1 Gbps
supports auto MDI/MDIX crossover
POE / Power Over Ethernet
POE IN support Yes. Passive POE.
POE OUT support Not supported. Consider TSW202 if needed.
Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power adapter and consumption
Power Adapter optional - 2-pin industrial DC power socket. Input voltage 9 – 30 VDC
Power consumption Idle: 0.3 W / Max: 2.3 W
Performance characteristics
Bandwidth (Non-blocking) 10 Gbps
Packet buffer 128 KB
MAC address table size 2K entries
Jumbo frame support 9216 bytes
External ports

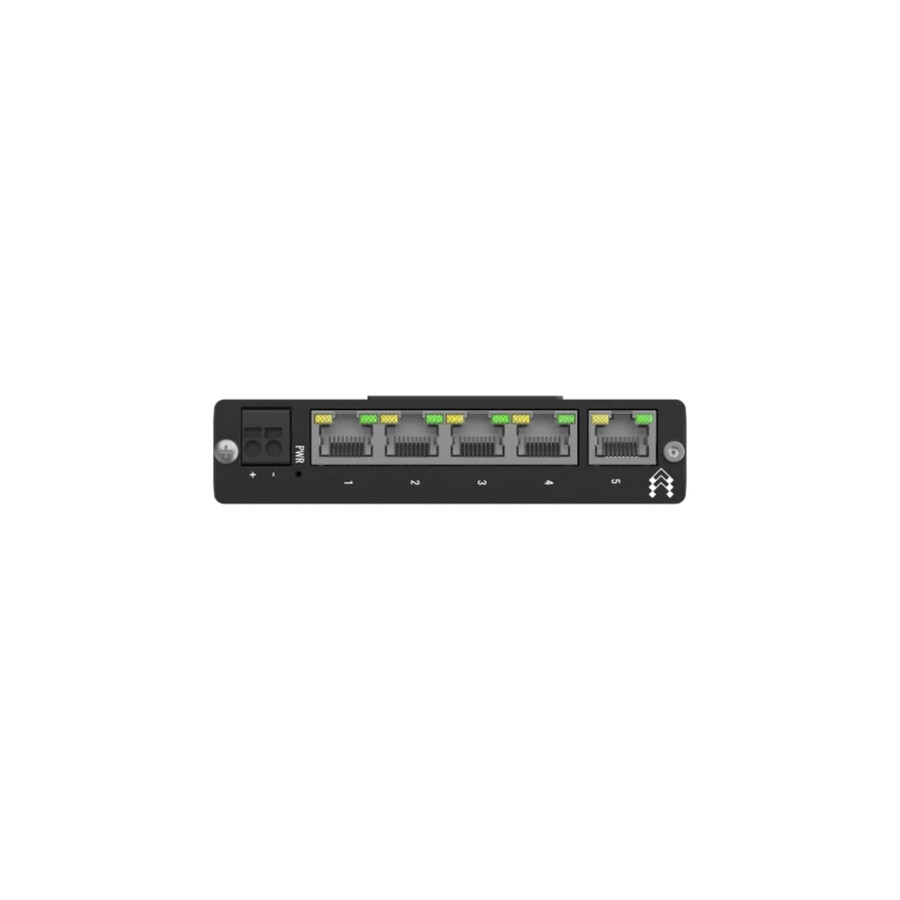

External I/O 5 x RJ45 ports,
1 x Power LED, 10 x ETH status LEDs,
1 x 2-pin industrial DC power socket,
1 x Grounding screw
Mechanical
Chassis Anodized aluminum housing and panels
Dimensions 113.1 x 27.4 x 80.5 mm
Weight (router) 0.174kg

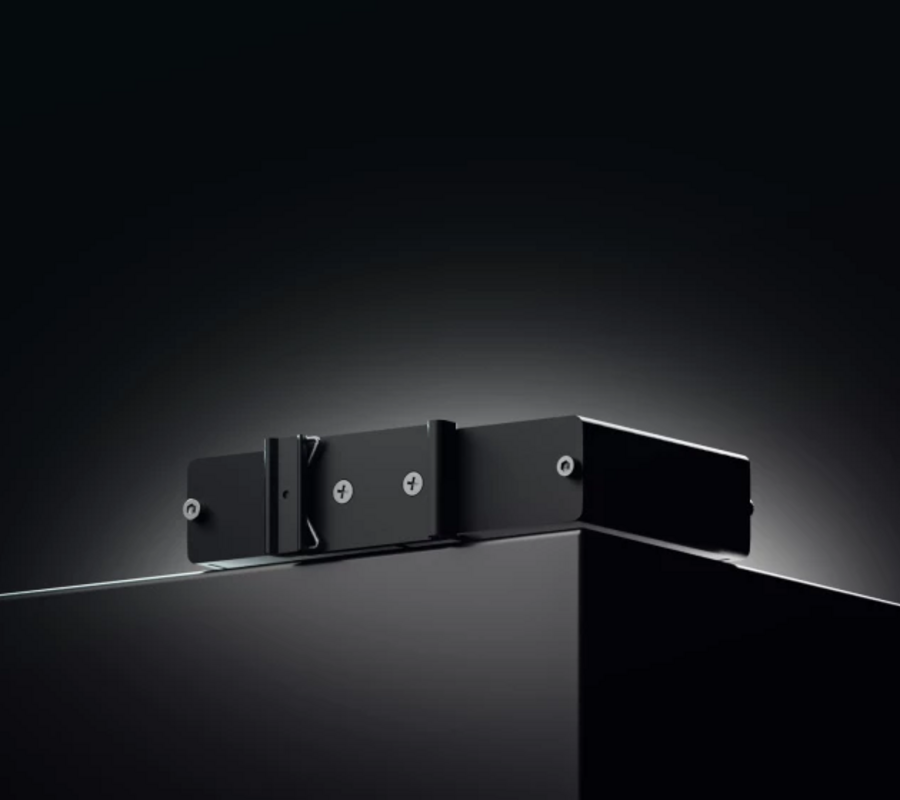

Mounting option Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement
Cooling passive
Warranty
Warranty 24 months
Accessories and peripherals
Included Accessories Quick start guide.
Optional power supply is not included.
Other
Manufacturer Teltonika
