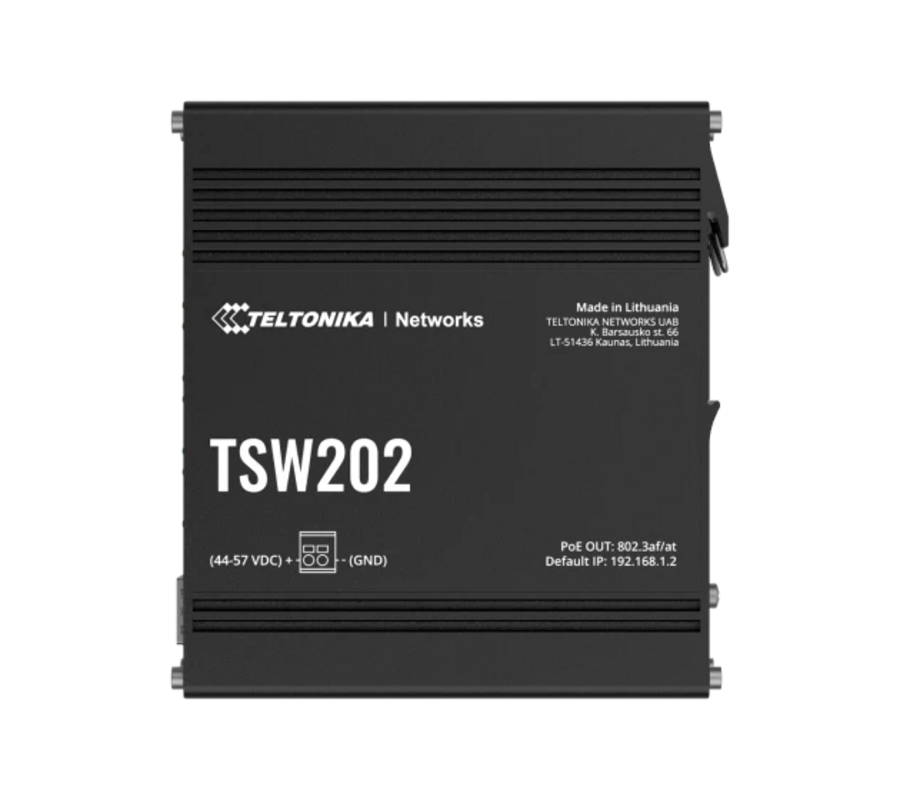

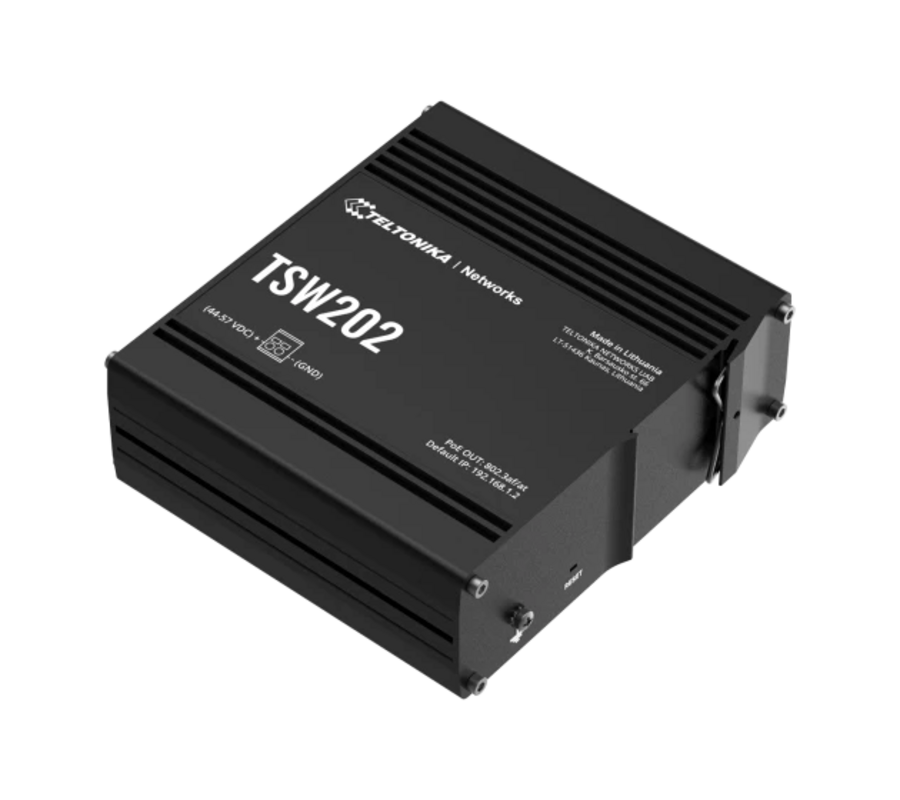

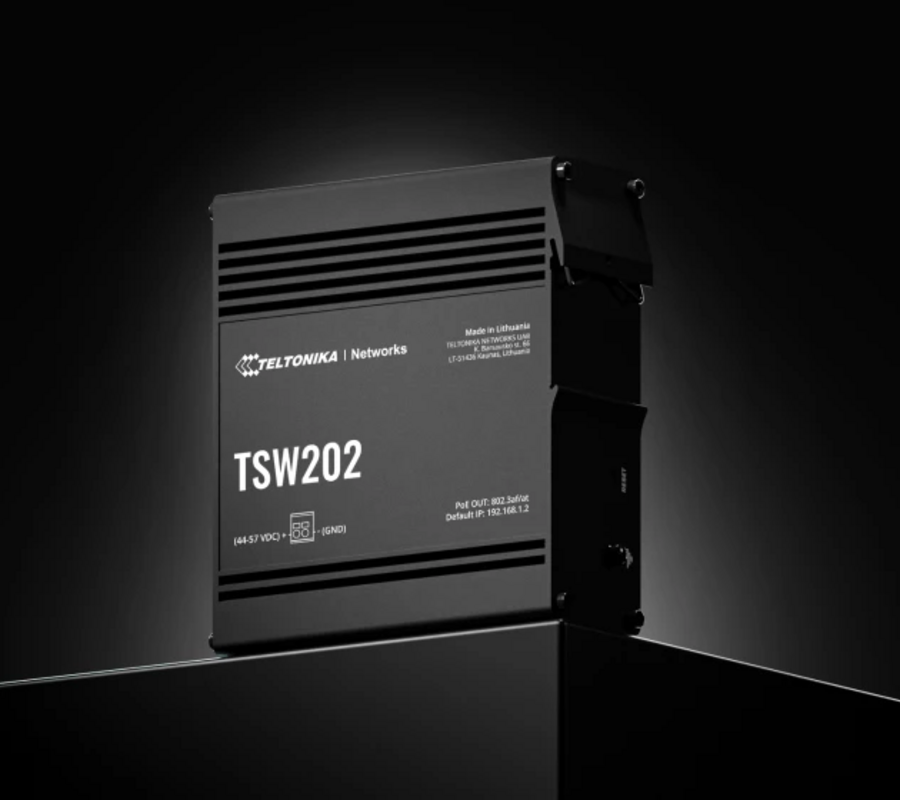

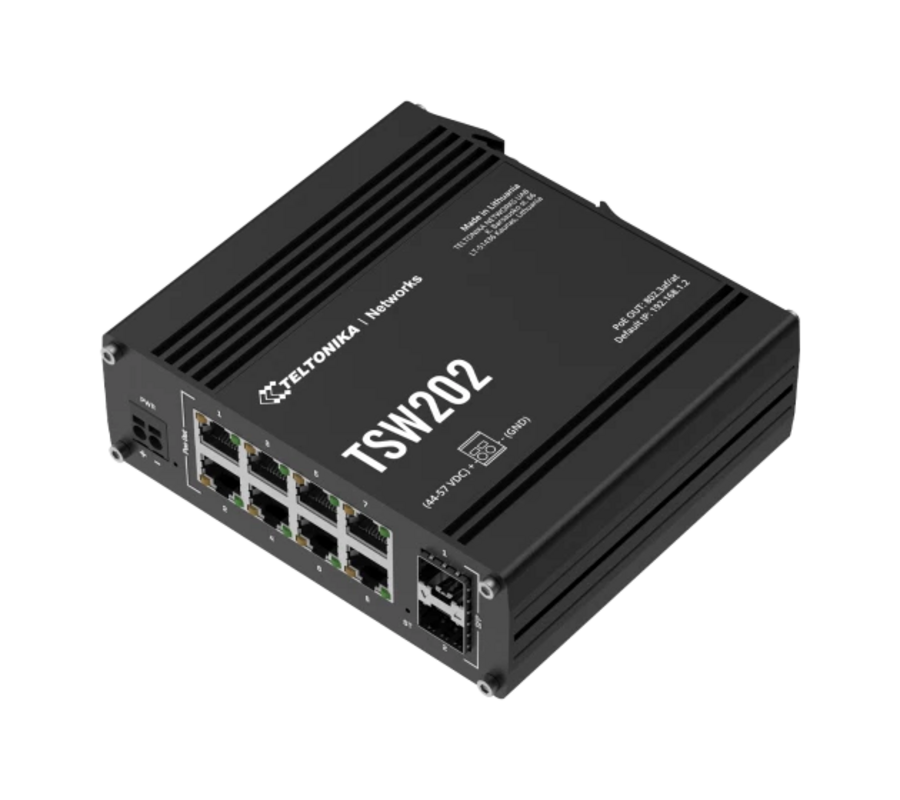

TSW202

TSW202 10-Port Managed PoE+ Industrial Switch no power adapter

  • Managed L2 with additional L3 features for enhanced management and control
  • 8 x port PoE+ ports and 2 x SFP ports for fibre optic communication

1,344 SEK

(1,680 incl. SE 25% VAT)
1,344 SEK 2099-01-01

TSW202 is the first-ever Teltonika Networks managed PoE+ switch, designed to provide granular network management capabilities while centralizing power distribution. This PoE+ switch enables flexibility over solution management and power supply and enhances M2M communication by supporting a wide range of industrial protocols, including EtherNet/IP, Profinet, and MRP. The TSW202 has 2 high-performance SFP ports for long-range fibre optic communication and 8 Gigabit Ethernet ports providing 30 W of power each.



Switch type
Switch type 10-Port Managed, industrial, POE+ switch
IEEE 802.3 series standards IEEE 802.1p, IEEE 802.1Q, 802.3az
Network Ports
Ethernet ports 10
Ethernet speed 1 Gbps
8x copper ethernet ports, 2x optical fibre SFP ports
POE / Power Over Ethernet
POE IN support Not supported.
POE OUT support Yes. 802.3af and 802.3at
PoE-out input voltage range 44 – 57 VDC
PoE Max Power per Port (at PSE): 30 W
Power adapter and consumption
Power Adapter optional, 2-pin industrial DC power socket
Power consumption Idle: < 3 W / Max: 8 W / PoE Max: 248 W
Input voltage range: 7 – 57 VDC
PoE-out input voltage range: 44 – 57 VDC
Performance characteristics
Bandwidth (Non-blocking) 20 Gbps
Packet buffer 512 KB
MAC address table size 8K entries
Jumbo frame support 10000 bytes
Hardware
Memory 128MB, DDR3
Storage 16 MB serial flash
External ports

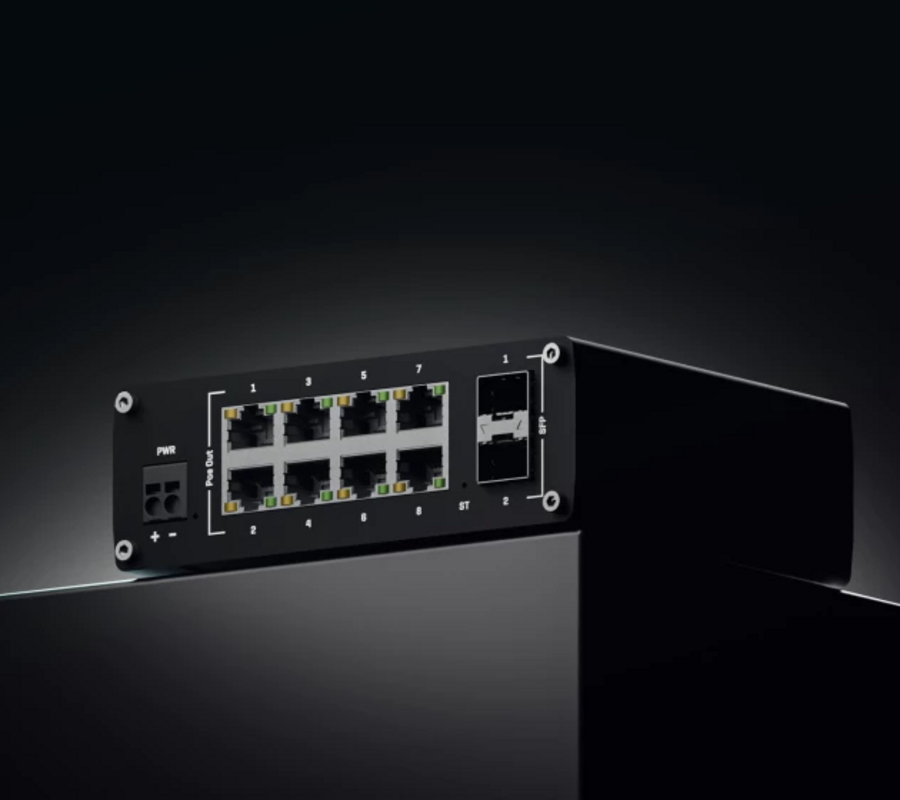

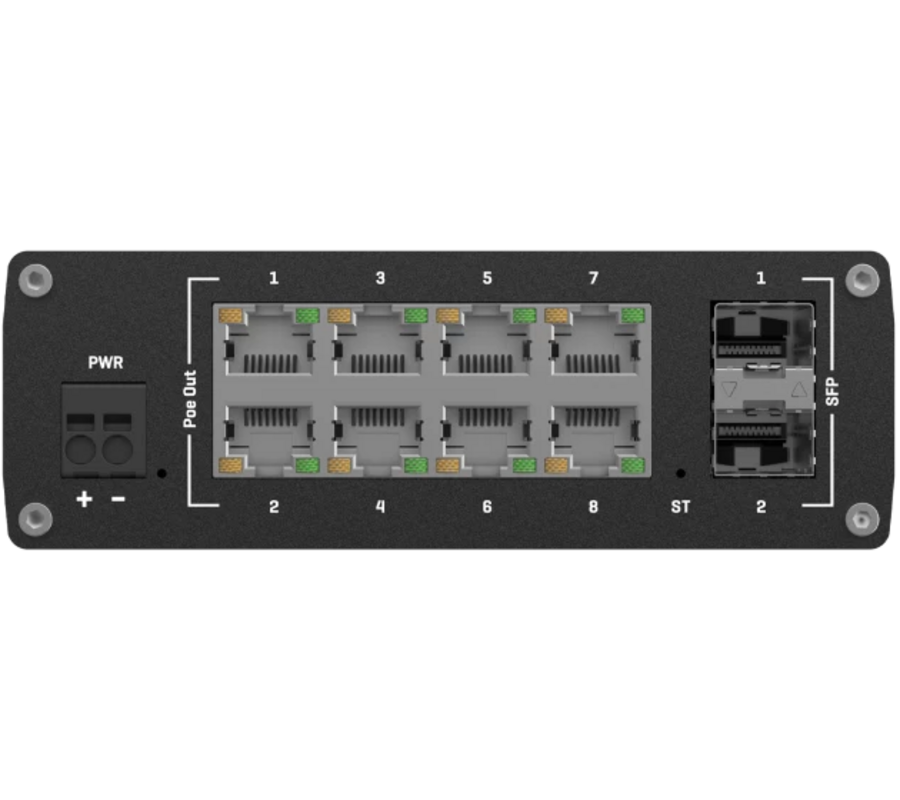

External I/O 8 x RJ45 ports, 10/100/1000 Mbps,
2 x SFP ports
1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs
1 x 2-pin industrial DC power socket

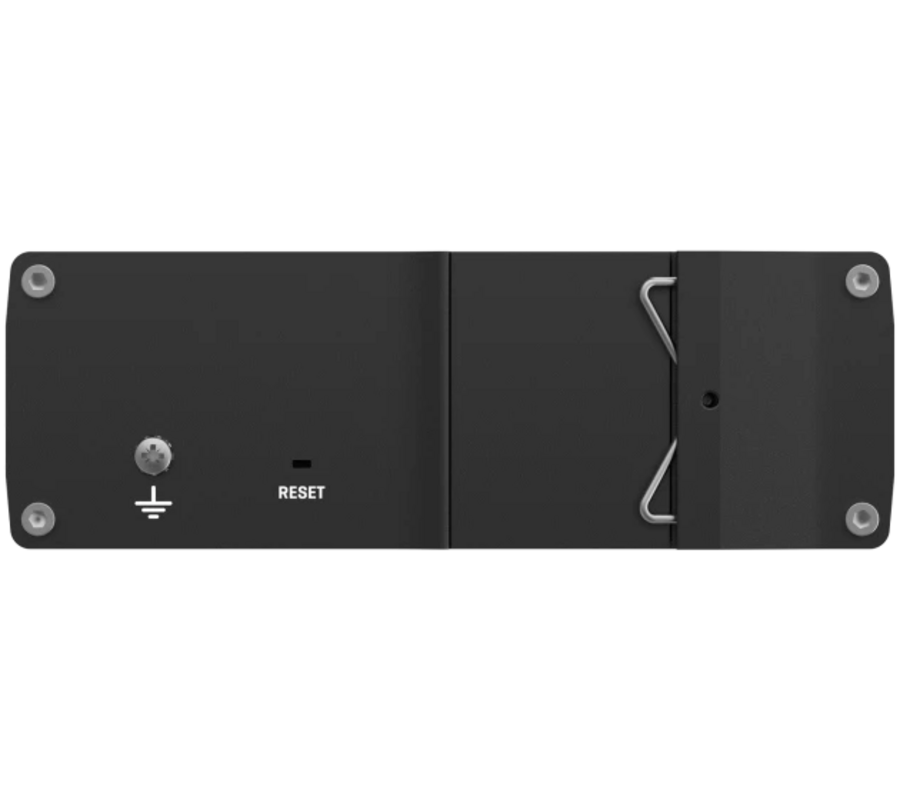

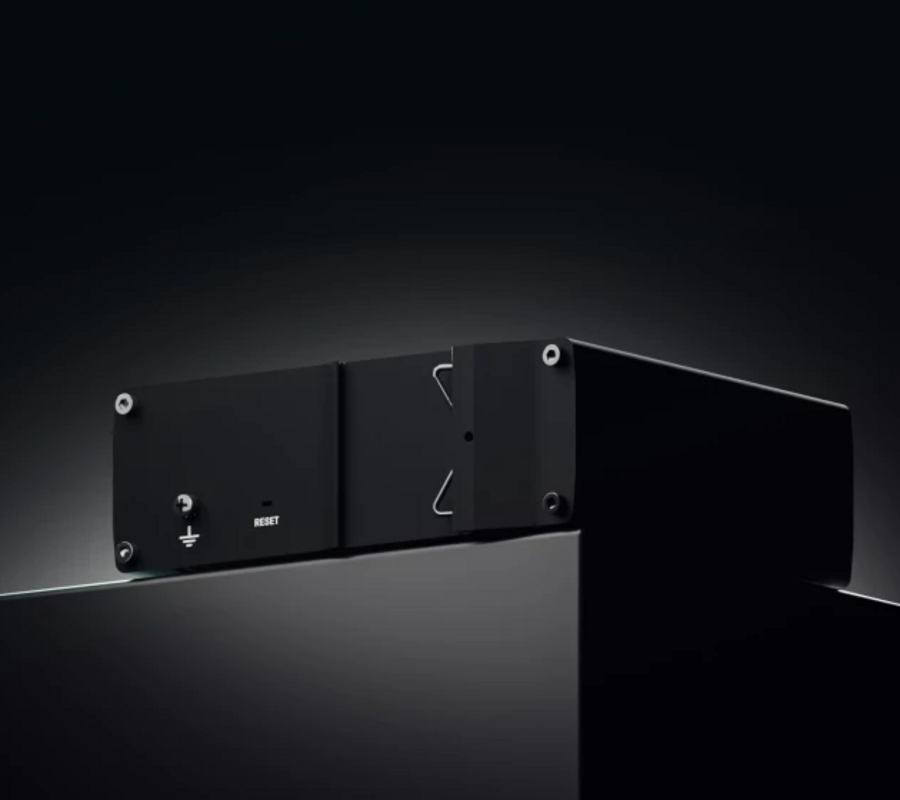

Software reset button
1 x Grounding screw
Mechanical
Chassis Anodized aluminum housing and panels
Dimensions 132 x 44.2 x 122.2 mm
Weight (router) 0.610 kg
Weight (shipping) 0.650
Mounting option Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement
Cooling Passive
Warranty
Warranty 24 months
Other
Manufacturer Teltonika
