RUTX12

RUTX12 all-in-one: Router, Switch, dual-band WiFi Access Point, two 4G modems

  • "all in one" device, combining the function of a Router, Switch, two 4G gateways, and a dual-band WiFi access point
  • 1x Gbps WAN and 4x Gbps LAN
  • Two redundant 4G mobile internet connections
  • Dual band WiFi 2.4Ghz and 5Ghz
  • Ability to configure multiple WAN failovers.
  • Great choice for a "business router".

3,740 SEK

(4,675 incl. SE 25% VAT)
3,740 SEK 2099-01-01

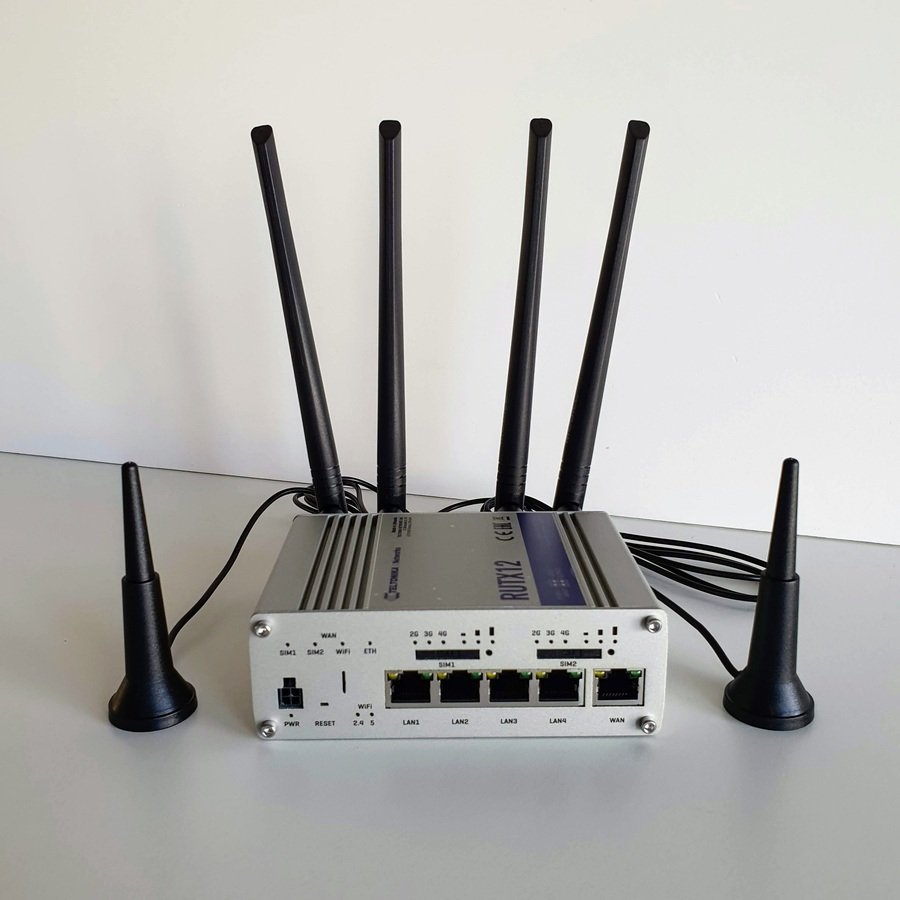

RUTX12 is an "all in one" device, combining the function of a Router, Switch, Mobile LTE gateway, GPS, Bluetooth, and a dual-band WiFi access point.

This is a rugged, industrial alternative to consumer routers. It's intended for customers that want a router that "just works" as a drop-in replacement for a "home router".

Note, RUTX12 is very similar to RUTX11, but it has two cellular modems instead of one. It allows for 2x simultaneous cellular connections. It also has 5 LAN ports instead of 4. It allows for "load balancing" - using multiple WAN sources to increase throughput.

This all-in-one "router" has:

  • 1x WAN port (Gigabit)
  • 4x LAN switch ports (Gigabit)
  • 2x 4G LTE CAT 6 mobile modem (2x modem, 2x SIM slots allows for two simultaneous connections)
  • 1x GNSS (GPS - can be used on a boat or mobile home)
  • 1x Bluetooth (for IoT and similar applications)
  • 2x WiFi (simultaneous dual-band, 2.4Ghz, and 5Ghz).

Supported LTE frequency:

The cellular modems will work only in Europe. It won't work in the USA.

  • 4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, B32
  • 4G (LTE-TDD): B38, B40, B41
  • 3G: B1, B3, B5, B8

Modems: 2x Quectel EG06-E

Included in the box:

  • Router RUTX12
  • 24W PSU power adapter
  • 4x LTE antennas (swivel, SMA male)
  • 2x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
  • 1x GNSS antenna (adhesive, SMA male, 3 m cable)
  • 1x Bluetooth antenna (magnetic mount, RP-SMA male, 1.5 m cable)
  • Ethernet cable (1.5 m)
  • SIM Adapter kit
  • Quick Start Guide

Performance:

We have extensively tested this device before offering it for sale. Test results are below

  • Full gigabit WAN-LAN routing (using cable)
    • When the LTE or WiFi connection is fully utilized, the LAN-WAN routing drops to about 500Mbit/s (this is generally OK)
  • WiFi performance
    • 5Ghz connection in close proximity reaches about 320-400 Mbit/s (very good in practice)
    • 5Ghz connection 12 meters away, 2 plaster walls in between, reaches about 120-180 Mbit/s (very good)
  • LTE / 4G connection:
    • LTE performance is always highly variable because it depends on the carrier and proximity to the base station. The numbers quoted below are only from our own tests in one location with one carrier. Higher performance is definitely possible under better conditions.
    • Signal strength 3-4 bars (-61dBm, -63dBm)
    • Download: 60-88 Mbit/s
    • Upload: 17-21 Mbit/s
    • The connection was tested over 2 days and it proved to be stable and reliable.
    • We have tested only one connection at the time (without load balancing)

Tips and things to know:

  • This device is "half open-source". The operating system is based on OpenWRT, so you can gain root access via SSH, but you won't be able to install a different OS.
  • There are 2 modems and 2 SIM slots allowing for two simultaneous cellular connections. Multiple WAN sources can be used simultaneously with "load balancing" to increase throughput.
  • One Cat 6 modem theoretically can transfer data at a rate up to 300 Mbps, but you should not expect much more than 100Mbit/s in practice. Two modems should be able to deliver twice that.
  • The operating system on this router is RutOS, a modified version of OpenWRT with a nicer user interface.
  • This device is manufactured in Lithuania. I think this is neat - we don't produce too much electronics in Europe
  • Getting started video: https://www.youtube.com/watch?v=xGXrgRNsWi8
  • Detailed specification on Teltonika's website: https://teltonika-networks.com/product/rutx12/
Processor system
CPU ARM IPQ4018 SoC with Quad-core ARM Cortex A7, 717 MHz
Graphics card None
Memory type 256 MB, DDR3L
Network
Ethernet ports 5
Ethernet speed 1 Gbps
Ethernet chipset QCA8075
1x WAN, 4x LAN
Storage
Primary storage 256 MB, SPI Flash
LTE/4G option
Sim slot 2
LTE option 2x LTE modems included. EC25E
WiFi option
Wi-Fi option 802.11ac Dual Band WIFI included
integrated WiFi
Power
Stress test draw 22
Power DC jack 4-pin DC connector
Idle: <4 W, Max: <22 W
OS Support
Supported operating systems RutOS - system based on OpenWRT.
Mechanical
Dimensions 132 x 44.2 x 95.1 mm
Weight (router) 540 g
Weight (shipping) 1kg
Mounting option DIN rail (can be mounted on two sides), flat surface placement
Cooling passive cooling
BIOS
BIOS U-Boot
Warranty
Warranty 24 months
Accessories and peripherials
Included Accessories - 24W PSU power adapter
- 4x LTE antennas (swivel, SMA male)
- 2x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
- 1x GNSS antenna (adhesive, SMA male, 3 m cable)
- 1x Bluetooth antenna (magnetic mount, RP-SMA male, 1.5 m cable)
- Ethernet cable (1.5 m)
- SIM Adapter kit
- Quick Start Guide
Other
Manufacturer Teltonika
gross weight 1.098
