APU2D4 dual band router (for Mihail only)
1,882 SEK
(2,352.5 incl. SE 25% VAT)
Product is currently out of stock.
This is a special deal for Mihail only :D
(If you are not Mihail and you found it via google, you can't buy it)
Hardware included:
- APU2D4 Board (4 core, 1Ghz/1.4Ghz CPU, 4GB ECC DDR3-1333 DRAM, 3 x Gbit ports)
- wle900vx (5Ghz 3×3 MIMO 802.11ac miniPCI)
- wle200nx (2.4Ghz 802.11n)
- 16GB SSD (mSATA)
- Chassis (Red, 6 antenna cutout)
- AC Adapter

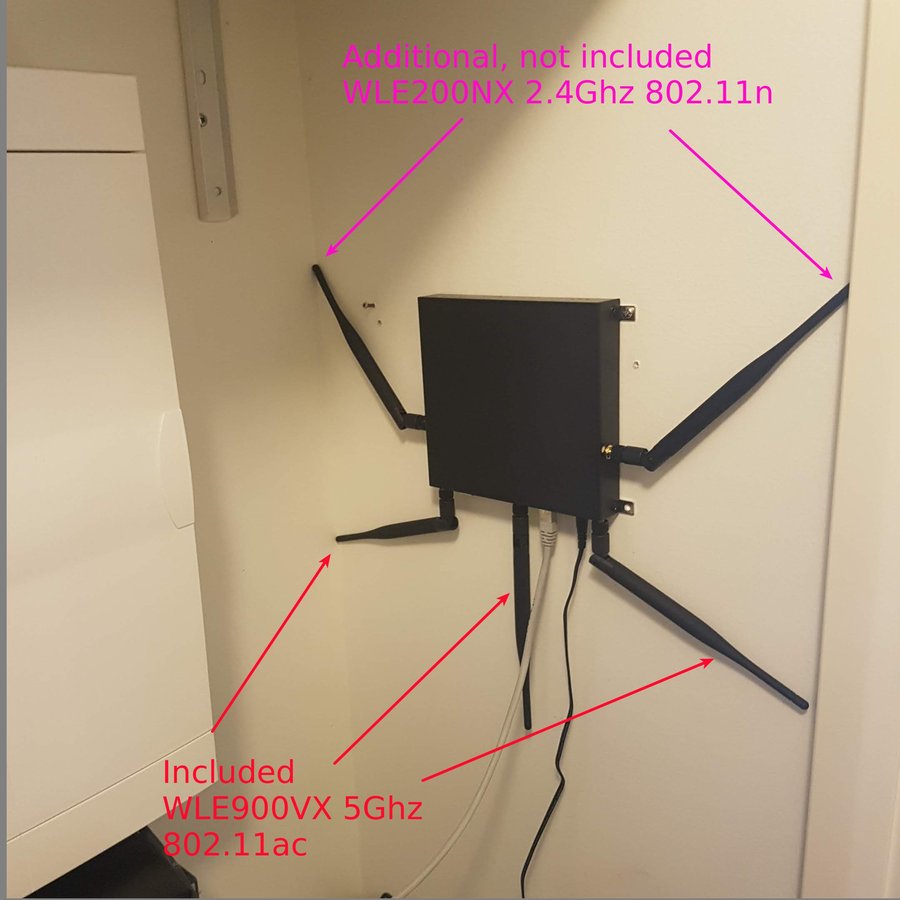

- Wall/ceiling mount (see photo with 5 antennas)
- Serial-to-USB cable for tinkering or OS reinstallation
| Processor system | |
|---|---|
| CPU | AMD Embedded G series GX-412TC, 1.0Ghz/1.4Ghz quad Jaguar core with 64 bit and AES-NI support, 32K data + 32K instruction cache per core, shared 2MB L2 cache. |
| OS Support | |
|---|---|
| Supported operating systems | pfSense® CE, OPNSense, OpenWRT and all other router systems are supported |
| Mechanical | |
|---|---|
| Dimensions | 16.8 cm X 15.7 cm |
| Cooling | Conductive cooling from the CPU to the enclosure using a 3 mm alu heat spreader (included) |
| Other | |
|---|---|
| Other | wle900vx WiFi adapter (can connect one more) |
| Manufacturer | PC Engines |
| gross weight | 0.900 |
| Memory | 4 GB ECC DDR3-1333 DRAM |
| Storage | 16GB SSD (durable and fast Solid state drive) |
| Ports | DB9 serial port, 2 USB 3.0 external, 2 USB 2.0 internal, three front panel LEDs, pushbutton, 2 miniPCI express (one with SIM socket), LPC bus, GPIO header, I2C bus, COM2 (3.3V RXD / TXD) |
| Graphics | - |
| Power consumption | 6W idle, 12W under full load |
