TLSense D2123IT routing test

This test has been performed using iperf3 utility between two TLSense D2123IT units.

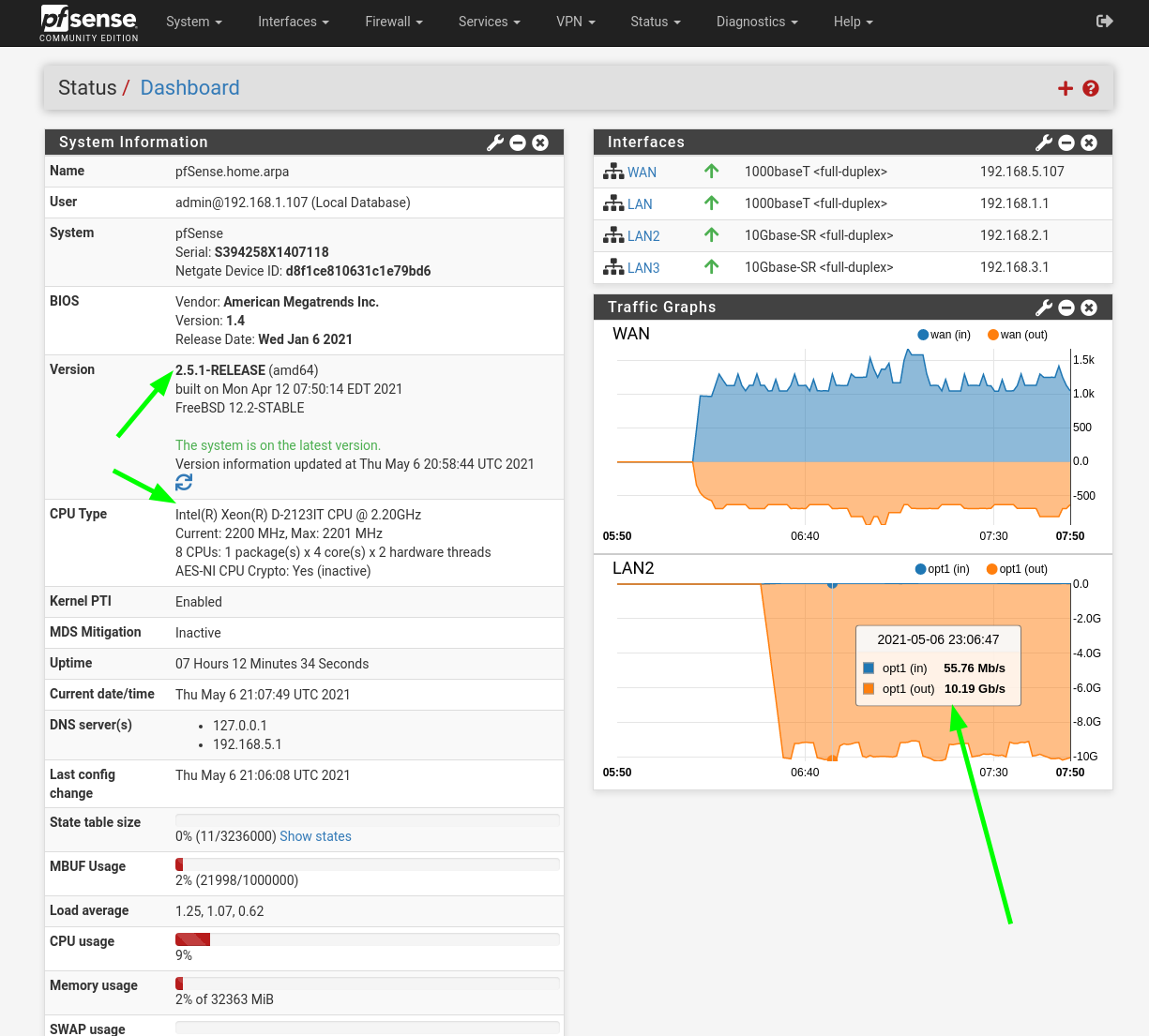

One device has been running pfSense 2.5.1 while the other one was running Debian 10. Both devices had AOC-E10GSFPSR transceiver and were connected with a fiber optic cable.

Iperf3 result

[2.5.1-RELEASE][admin@pfSense.home.arpa]/root: iperf3 -c 192.168.2.100
Connecting to host 192.168.2.100, port 5201
[  5] local 192.168.2.1 port 57547 connected to 192.168.2.100 port 5201
[ ID] Interval           Transfer     Bitrate         Retr  Cwnd
[  5]   0.00-1.00   sec  1.06 GBytes  9.12 Gbits/sec   24    586 KBytes
[  5]   1.00-2.00   sec  1.08 GBytes  9.29 Gbits/sec   24    399 KBytes
[  5]   2.00-3.00   sec  1.08 GBytes  9.31 Gbits/sec   17   1.31 MBytes
[  5]   3.00-4.00   sec  1.09 GBytes  9.32 Gbits/sec   13   1005 KBytes
[  5]   4.00-5.00   sec  1.08 GBytes  9.26 Gbits/sec   24    690 KBytes
[  5]   5.00-6.00   sec  1.09 GBytes  9.37 Gbits/sec    9    841 KBytes
[  5]   6.00-7.00   sec  1.07 GBytes  9.17 Gbits/sec   23    787 KBytes
[  5]   7.00-8.00   sec  1.07 GBytes  9.20 Gbits/sec   42    871 KBytes
[  5]   8.00-9.00   sec  1.07 GBytes  9.20 Gbits/sec   19    432 KBytes
[  5]   9.00-10.00  sec  1.07 GBytes  9.21 Gbits/sec   26    470 KBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate         Retr
[  5]   0.00-10.00  sec  10.8 GBytes  9.25 Gbits/sec  221             sender
[  5]   0.00-10.16  sec  10.8 GBytes  9.10 Gbits/sec                  receiver

iperf Done.



Further performance tests will be performed shortly.
