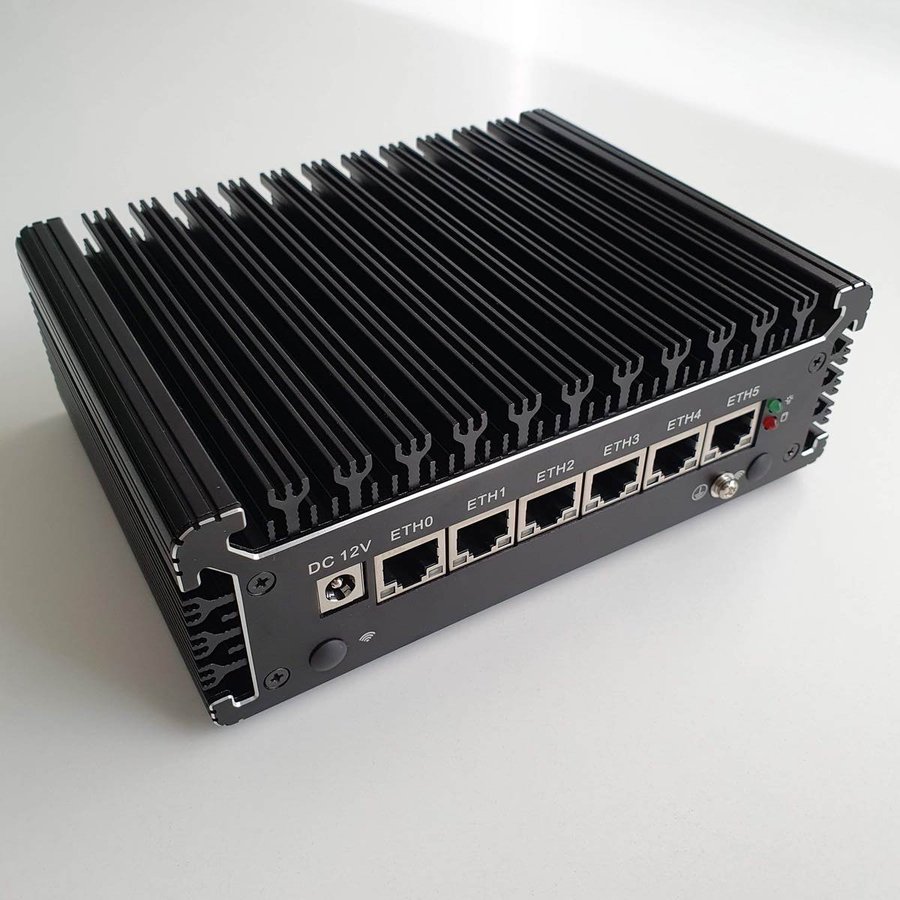

TLSense J4125: 6x 2.5 Gbps LAN, J4125 CPU, 8GB RAM, 128GB SSD
3 883 SEK
(4 853,75 incl. SE 25% VAT)
Product is currently out of stock.
See the hardware benchmark to understand how this model compares to other routers offered in the webshop.
Hardware specification
- CPU: Intel Celeron J4125 Quad-Core, 4 threads, 4 MB Cache, Up To 2.7GHz. Full specification on Intel's website
- Network: 6 x Intel i225V 2.5Gbps NIC
- Memory: 4-32GB DDR4 (2x slot DDR4 2400MHz) Theoretically, the maximum is 8GB, but in practice, 16GB and 32GB modules work just fine.
- Storage: 128GB mSATA SSD installed.
- Graphics: Intel® UHD Graphics 600
- 1 x HDMI
- 4 x USB (2x 3.0, 2x 2.0)
- 1 x SATA 3 - for a 2.5' size hard drive.
- Expansion ports:
- 1 x Mini-PCIe (mPCIe with USB interfaces)
- CPU has AES-NI support
Included in the box
- 1 x TLSense router (as specified above)
- 1 x Power adapter (12V, 5A)
- 1 x VESA mount (can be used to mount to a wall)
Tips:
- You can install a regular 2.5-inch SATA drive to extend storage to multiple TB.
- Use the HDMI port to enter into BIOS. (press F11 at boot)
| Processor system | |
|---|---|
| CPU | Intel Celeron J4125 Quad Core, Up To 2.7GHz. |
| OS Support | |
|---|---|
| Supported operating systems | pfSense® CE, OPNSense, OpenWRT and all other router systems are supported |
| Mechanical | |
|---|---|
| Cooling | Passively cooled |
| BIOS | |
|---|---|
| BIOS | AMI BIOS |
| Other | |
|---|---|
| Manufacturer | Tptn |
| gross weight | 1.200 |
| Memory | 4GB-32GB DDR4 (2400MHz). Theoretical max is 8GB, but in practice the CPU supports 32GB and it works just fine. |
| Storage | 128GB m.2 mSATA (additional storage via 1x 2.5'' HDD) |
| Ports | 1 HDMI, 1 RS-232, 4 USB, 1 SATA 3.0, 1 x Mini-PCIe, 6 x LAN |
| Graphics | Intel® UHD Graphics 600 |
| Power consumption | ~10W |
