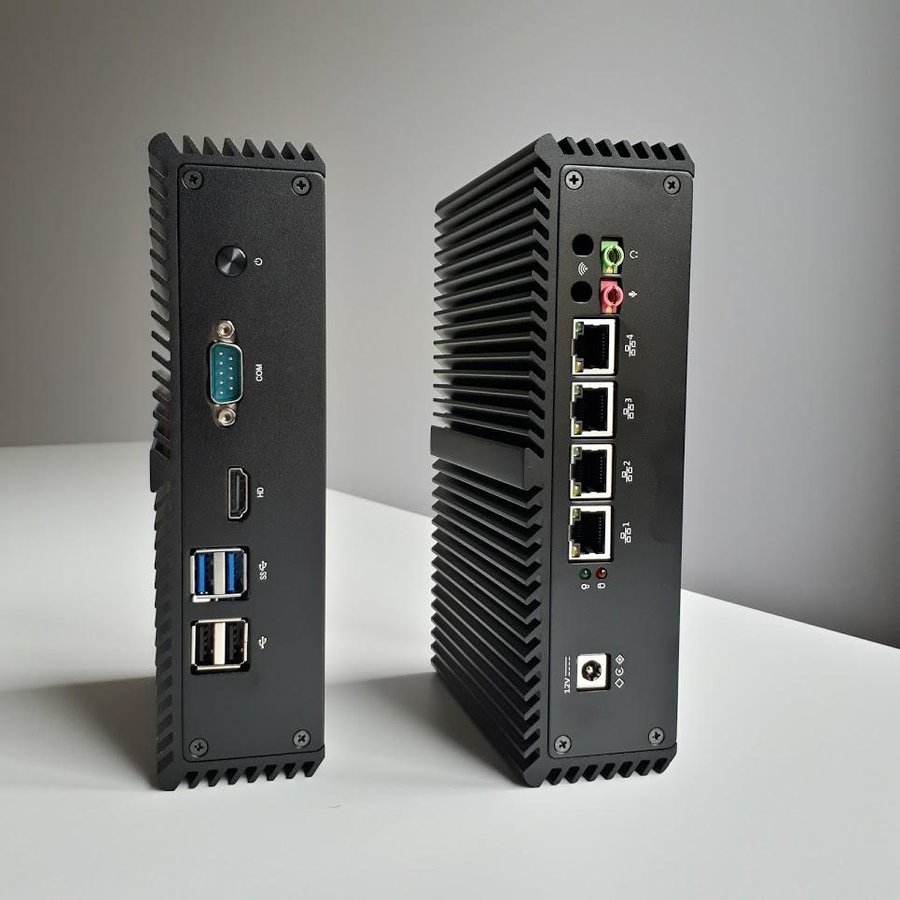

TLSense i7 4500U: 4x Gigabit LAN, 4th gen i7 CPU, 64GB SSD, 8GB RAM

TLSense routers are intended for customers needing high VPN throughput or high IDS/IPS performance in addition to hight routing performance and low latency. This model has roughly 6x better OpenVPN performance than APU.

Hardware supports pfSense®, OPNSense, OpenWRT as well as Windows, Linux, OpenBSD, and other operating systems.

See the hardware benchmark to understand how this model compares to other routers offered in the webshop.

Hardware specification

• CPU: 4th generation Intel Core i7 4500U Dual Core, 4 threads, Up To 3.0GHz. Full specification on Intel's website
• Network: 4 x Intel I211-AT Gigabit NIC
• Memory: Installed 8GB DDR3 (1 slot x DDR3L SO-DIMM slot 1333/1600MHz. Max 8GB)
• Storage: mSATA. 60GB installed. Supports up to 480GB. Regular 2.5' SATA drives can be installed as well.
• Intel® HD Graphics 4400
• 1 x HDMI
• 1 x RS-232
• 4 x USB (2x 3.0, 2 x 2.0)
• 1 x SATA 3 - for a 2.5' size hard drive.
• 2 x Mini-PCIe (1x mSata, 1x miniPCIe with PCI interface.)
• CPU has AES-NI support
• It can be used as a router, server, or even a desktop computer.

Included in the box

• 1 x TLSense router (as specified above)
• 1 x Power adapter (12V, 5A)
• 1 x SATA cable (installed)
• 1 x VESA mount

Tips:

• You can install a regular 2.5 inch SATA drive to extend storage to multiple TB.
• Use the HDMI port to enter into BIOS. (press F11 at boot)
• This model works with the mPCIe WiFi cards offered in the store.

Throughput

This hardware has been internally tested at TekLager to provide clients with reliable information.

• Full 1 Gigabit routing under pfSense 2.4 (CPU load about 0.3)
• ~700 Mbit/s encrypted OpenVPN throughput under pfSense 2.4.4 using AES-GCM. Tested on NordVPN.
• 1Gbit/s encrypted WireGuard throughput under OpenWRT.
• See the hardware benchmark to understand how this model compares to other routers offered in the webshop.

Advantages over competing hardware products

• Very low power consumption - 15W
• Low total cost of ownership (no licensing fees, low power consumption)
• Completely silent. 0 dB - passively cooled. No moving parts.
• CPU has built-in encryption support (AES-NI), allowing for high VPN throughput.
• No artificial add-ons required to make your system fully functional
• No additional charges for extra features - everything is included: unlimited users, unlimited firewall rules, unlimited VPN accounts.
• No planned obsolescence - future versions of open-source operating systems will continue to work on this hardware.
