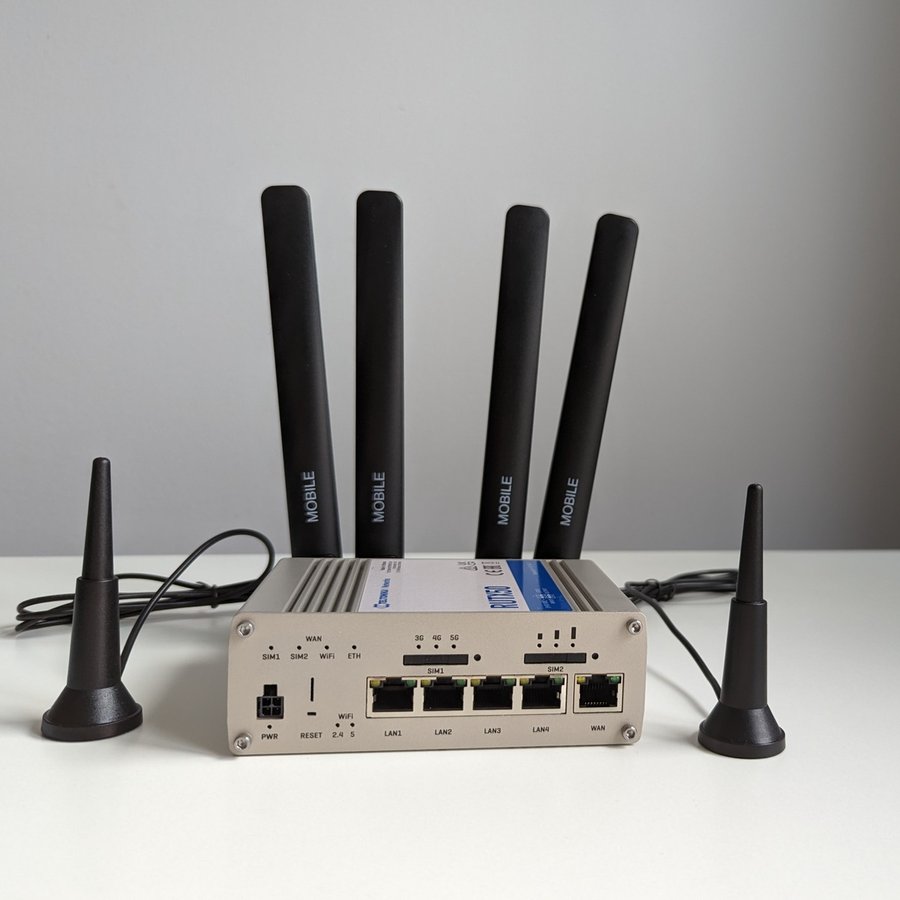

RUTX50

RUTX50 all-in-one: Router, Switch, WiFi Access Point, 5G modem

  • "all in one" device, combining the function of a Router, Switch, 5G gateway, and a dual-band WiFi access point
  • 1x Gbps WAN and 4x Gbps LAN
  • 5G high speed mobile internet connections
  • Dual band WiFi 2.4Ghz and 5Ghz
  • This device is similar to RUTX11, but it has a 5G modem
  • Great choice for a "5G router".

5,488 SEK

(6,860 incl. SE 25% VAT)
5,488 SEK 2099-01-01

RUTX50 is an "all in one" device, combining the function of a Router, Switch, Mobile LTE gateway, GPS, and a dual-band WiFi access point.

This device is similar to RUTX11, but it has a 5G modem.

This is a rugged, industrial alternative to consumer routers. It's intended for customers that want a router that "just works" as a drop-in replacement for a "home router".

This all-in-one "router" has:

  • 1x WAN port (Gigabit)
  • 4x LAN switch ports (Gigabit)
  • 1x 5G LTE mobile modem. Up to 3.3 Gbps (1x modem, 2x SIM card slots for failover)
  • 1x GNSS (GPS - can be used on a boat or mobile home)
  • 1x WiFi (simultaneous dual-band, 2.4Ghz, and 5Ghz).

Included in the box:

  • Router RUTX50
  • 18W PSU power adapter
  • 4x LTE antennas (swivel, SMA male)
  • 2x WiFi antennas (swivel, RP-SMA male)
  • 1x GNSS antenna (adhesive, SMA male, 3 m cable)
  • Ethernet cable (1.5 m)
  • SIM Adapter kit
  • Quick Start Guide

Tips and things to know:

  • This device is "half open-source". The operating system is based on OpenWRT, so you can gain root access via SSH, but you won't be able to install a different OS.
  • There are 2 SIM slots, but only 1 LTE modem. This means that only one connection is possible at the time, but the modem can fail over to the second carrier/SIM if the primary connection drops. Great for a sailing boat or mobile home connection.
  • The operating system on this router is RutOS, a modified version of OpenWRT with a nicer user interface.
  • This device is manufactured in Lithuania. I think this is neat - we don't produce too much electronics in Europe
  • Getting started video: https://www.youtube.com/watch?v=a5jLmUI_eWo
  • Detailed specification on Teltonika's website: https://teltonika-networks.com/product/rutx50/
Processor system
CPU ARM IPQ4018 SoC with Quad-core ARM Cortex A7, 717 MHz
Graphics card None
Memory type 256 MB, DDR3L
Network
Ethernet ports 5
Ethernet speed 1 Gbps
Ethernet chipset QCA8075
1x WAN, 3x LAN
Storage
Primary storage 256 MB, SPI Flash
LTE/4G option
Sim slot 2
LTE option 5G modem included
WiFi option
Wi-Fi option Dual-band WiFi-5 included
integrated WiFi
Power
Stress test draw 18
Power DC jack 4-pin DC power connector
Idle: <4 W, Max: <18 W
OS Support
Supported operating systems RutOS - system based on OpenWRT.
Mechanical
Dimensions 132 x 44.2 x 95.1 mm
Weight (router) 533 g
Weight (shipping) 1kg
Mounting option DIN rail, flat surface placement
Cooling passive cooling
BIOS
BIOS U-Boot
Warranty
Warranty 24 months
Other
Manufacturer Teltonika
gross weight 1.098
Graphics -
Power consumption 22 W Max
