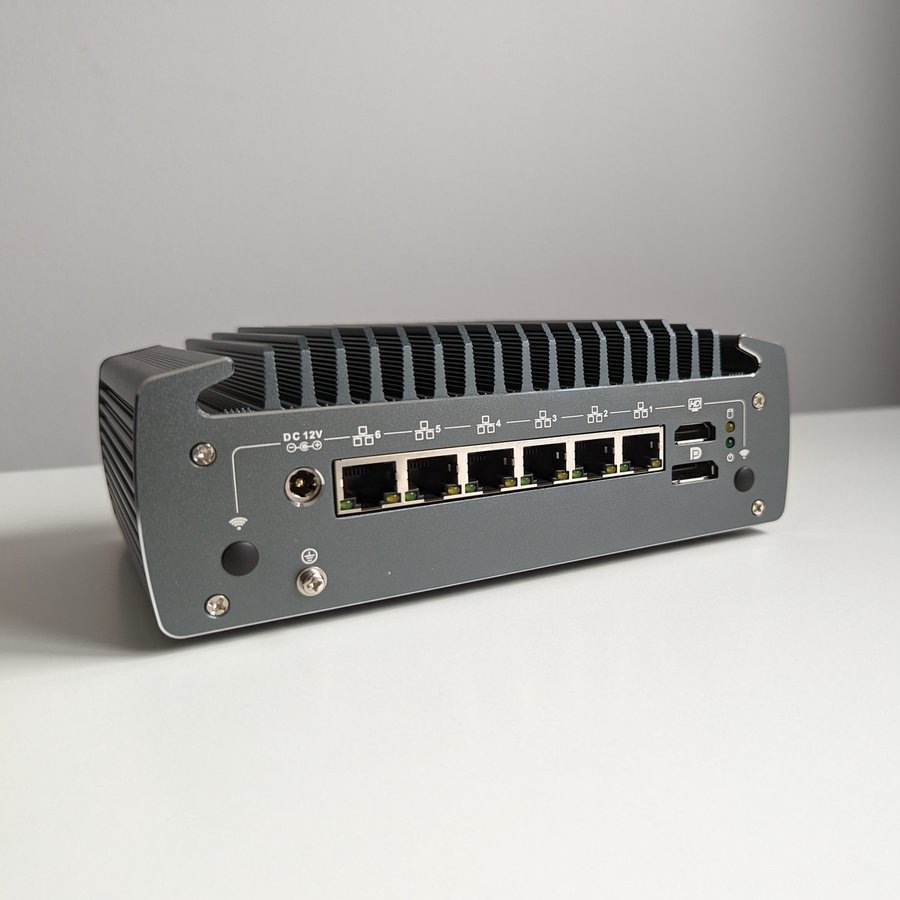

TLSense 10810U: 6x 2.5Gbps LAN, 10th gen i7 CPU, 256GB NVMe SSD, 16GB RAM

TLSense routers are intended for customers needing high VPN throughput or high IDS/IPS performance in addition to high routing performance and low latency. This model has roughly 12x better OpenVPN performance than APU.

Hardware supports pfSense®, OPNSense, OpenWRT as well as Windows, Linux, OpenBSD, and other operating systems.

See the hardware benchmark to understand how this model compares to other routers offered in the webshop.

Hardware specification

• CPU: 10th generation Intel Core i7 10810U Quad-Core, 8 threads, Up To 4.9GHz.
• Network: 6 x Intel I225-V rev3 2.5Gbps NIC
• Memory: Up to 64 DDR4 (2 slots x DDR4-2666)
• Storage: M.2 NVMe. Supports up to 1TB. Regular 2.5' SATA drives can be installed as well.
• 1 x HDMI
• 1 x DisplayPort
• 1 x serial via RJ45
• 6 x USB (3x USB 2.0, 3x USB 3.0)
• 1 x SATA 3 - for a 2.5' size hard drive. (cable included)
• 1 x M.1 2280 M-Key slot (Supports SATA and NVMe protocols)
• 1 x M.2 3052 B-key (USB protocol, for LTE modems. SIM slot connected)
• 1 x M.2 2230 E-Key (USB protocol)
• TPM 2.0 support
• It can be used as a router, server, or desktop computer.

Included in the box

• 1 x TLSense router (as specified above)
• 1 x Power adapter (12V, 7.5A)
• 1 x SATA cable
• 1 x VESA mount (can be mounted to a wall)

Tips:

• You can install a regular 2.5 inch SATA drive to extend storage to multiple TB.
• Use the HDMI port to enter into BIOS. (press F11 at boot)
• It's possible to enter BIOS using a serial cable as well. See the RJ45-serial cable.
• Compatible with laser engraving

Throughput

This hardware has been internally tested at TekLager to provide clients with reliable information.

• Full 2.5 Gigabit routing under all popular operating systems (pfSense, OPNsense, etc).
• Full 2.5 Gigabit encrypted WireGuard throughput under OpenWRT.
• See the hardware benchmark to understand how this model compares to other routers in the webshop.

Advantages over competing hardware products

• Very low power consumption for so powerful router - 15W TDP
• Low total cost of ownership (no licensing fees, low power consumption)
• Completely silent. 0 dB - passively cooled. No moving parts.
• CPU has built-in encryption support (AES-NI), allowing for high VPN throughput.
• No artificial add-ons required to make your system fully functional
• No additional charges for extra features - everything is included: unlimited users, unlimited firewall rules, VPN accounts.
• No planned obsolescence - future versions of open-source operating systems will continue to work on this hardware.
