TLSense C3758R 1U: 4x 10Gbps SFP+, 5x 2.5Gbps LAN, Atom C3758R CPU, 256G SSD, 16G RAM
- Intel Atom C3758R, 8 cores.
- 4x 10Gbps SFP+ ports
- 5x 2.5Gbps NIC ports
- 4-64GB RAM
- Two NVMe SSD ports
- Great choice for running a 10Gbps network
- 1U Chassis
5,969 SEK
(7,461.25 incl. SE 25% VAT)
Product in stock. Shipping within 48 hours.

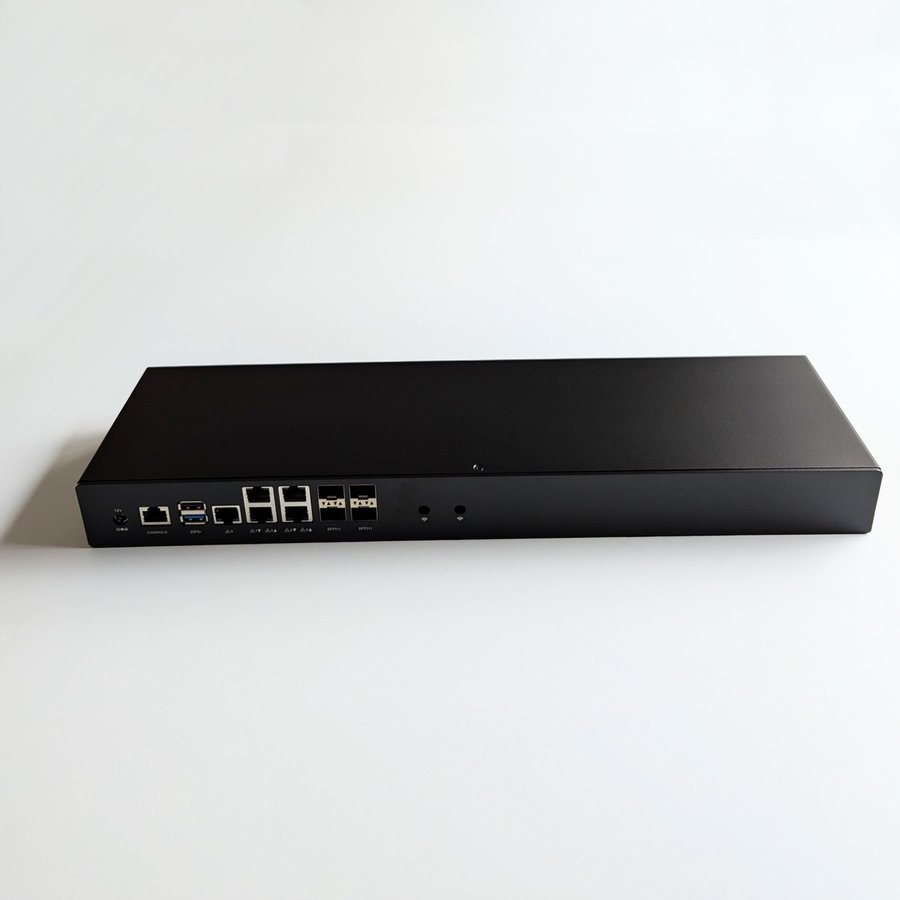

This router is intended for users needing a 10Gbps connection. It's the same hardware as TLSense C3758R but in a 1U rack chassis
It's an impressive 9-port router with a powerful Atom C3758R CPU. Enough to route traffic at 10Gbps using popular operating systems.
See the hardware benchmark to understand how this model compares to other routers in the webshop.
| Processor system | |
|---|---|
| CPU | Intel Atom C3758R |
| AES-NI | Yes |
| Graphics card | ASPEED AST2400 |
| Graphics ports | VGA port |
| Memory type | DDR4-2400. Up to 64GB |
| Memory slots | 2 |
| Network | |
|---|---|
| Ethernet ports | 9 |
| Ethernet speed | 10Gbps and 2.5Gbps |
| Ethernet chipset | Intel I225-V and Intel X553 |
| Storage | |
|---|---|
| Primary storage | 2 x M key M.2 for NVMe SSD |
| 2nd storage | 2 x 2.5-inch HDD/SSD |
| 3rd storage | 1 x Mini SAS (SFF8087) |
| Serial connection | |
|---|---|
| Serial port | RJ45 serial port |
| Can't enter BIOS from serial port. Use VGA to enter BIOS | |
| External ports | |
|---|---|
| External I/O | 1 x Power Button, 1 x Reset Button, 1 x DB15 (VGA), 1 x Nano SIM Slot, 1 x USB Type C, 1 x Mini SAS (SFF8087), 1 x DC Jack, 1 x RS-232 (RJ-45), 2 x USB 3.0, 5 x Intel I225-V 2.5 Gigabit LAN, 4 x 10G SFP+ |
| Internal I/O ports | |
|---|---|
| Internal I/O | 1 x M.2 for 4G/5G (B key, 3042/3052), 2 x M key M.2 for SSD (2280, PCIe 3.0 x 2), 2x Memory slot, |
| LTE/4G option | |
|---|---|
| Sim slot | 1x |
| LTE option | Yes, M.2 |
| Power | |
|---|---|
| CPU TDP | 25 |
| Idle draw | 16.8W |
| Draw at 1 core | 17.5W |
| Stress test draw | 20.9 W |
| Power Adapter | 12V, 5A |
| Power DC jack | 5.5mm, 2.5mm |
| OS Support | |
|---|---|
| Supported operating systems | pfSense® CE, OPNSense, OpenWRT and all other router systems are supported |
| Mechanical | |
|---|---|
| Chassis | Aluminium alloy |
| Dimensions | 217 x 122 x 62mm |
| Weight (router) | 1.7 |
| Weight (shipping) | 2.3 |
| Mounting option | VESA mount (can be mounted to a wall) |
| Cooling | Actively cooled - 1x Fan |
| BIOS | |
|---|---|
| BIOS | AMI BIOS |
| Warranty | |
|---|---|
| Warranty | 12 months |
| Accessories and peripherals | |
|---|---|
| Included Accessories | 1x TLSense router 1x M.2 NVMe (depending on variant) 1x Power adapter 1x SATA cable 1x VESA mount (can be mounted to a wall) |
| Other | |
|---|---|
| Manufacturer | Qotom |
| gross weight | 2.300 |
