TL-J6412-1U

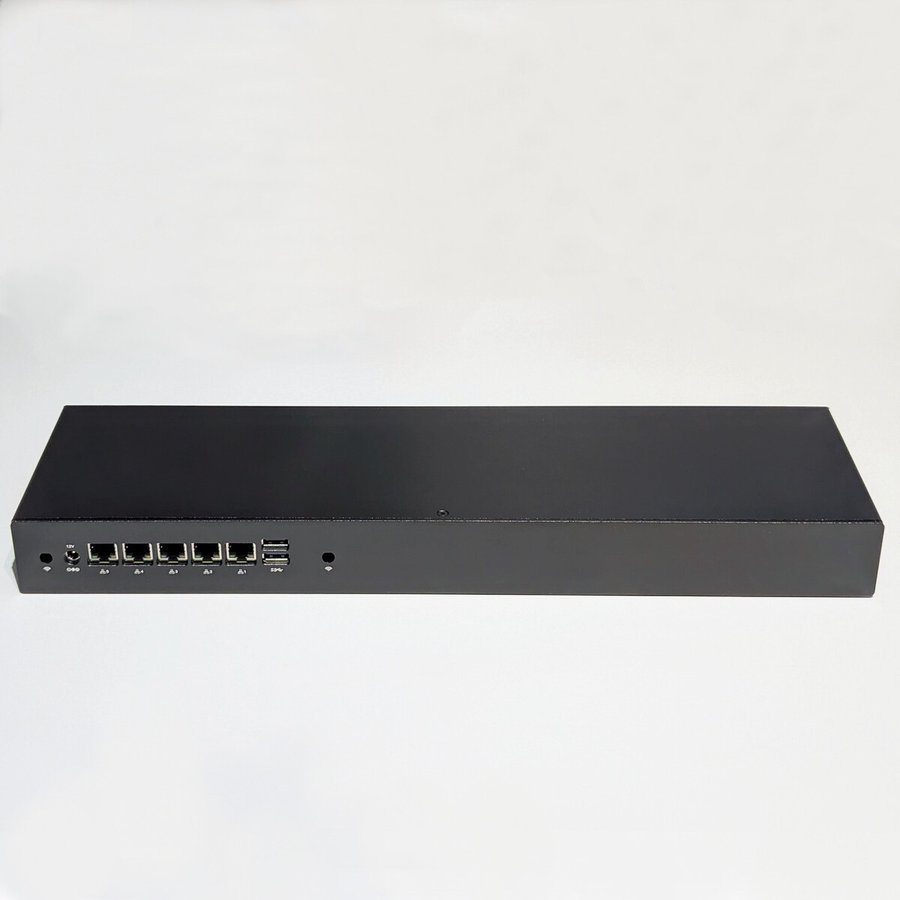

TLSense J6412: 1U Rack, 5x 2.5Gbit LAN, J6412 CPU, 16GB RAM, 128GB SSD

  • 5x 2.5Gbps NIC ports
  • 1U Rack chassis
  • Powerful J6412 CPU
  • 4-32GB RAM
  • 16GB-3TB SSD

3,613 SEK

(4,516.25 incl. SE 25% VAT)
3,613 SEK 2099-01-01

TLSense routers are intended for customers needing high VPN throughput or IDS/IPS performance in addition to high routing performance and low latency. This model has roughly 5x better OpenVPN performance than APU.

Hardware supports pfSense®, OPNSense, OpenWRT, as well as Windows, Linux, OpenBSD, and other operating systems.

See the hardware benchmark to understand how this model compares to other routers in the webshop.

Tips:

  • You can install a regular 2.5-inch SATA drive to extend storage to multiple TB.
  • Use the HDMI port to enter into BIOS. (press F11 at boot)
  • This model does not work with the mPCIe WiFi cards offered in the store
  • This model has an mSATA port as well as NVMe port, allowing for two SSDs simultaneusly.
  • Compatible with laser engraving

Customers who bought TLSense J6412 1U, also bought

TRB140 mobile LTE internet gateway/modem.

1,245 SEK

(1,556.25 incl. SE 25% VAT)

RUTX50 all-in-one: Router, Switch, WiFi Access Point, 5G modem

5,940 SEK

(7,425 incl. SE 25% VAT)
Processor system
CPU Intel® Celeron® Processor J6412
AES-NI Supported
Graphics card Intel® UHD Graphics for 10th Gen Intel® Processors
Graphics ports 1x HDMI, 1x DP, 1x VGA
Memory type DDR4 2400MHz. Up to 32G
Memory slots 1
Theoretical max is 8GB, but in practice the CPU supports 32GB Samsung memory and it works just fine.
Network
Ethernet ports 5
Ethernet speed 2.5Gbps
Ethernet chipset Intel I225-V rev3
Storage
Primary storage NVMe, up to 3TB
2nd storage mSATA. Up to 512GB
3rd storage 2.5'' SATA
multiple storage options. NVMe, mSATA and SATA.
Serial connection
Serial port 1 x RS-232 Port (RJ-45)
External ports
External I/O 1 x Power Button, 1 x Reset Button, 1 x Power LED, 1 x HDD LED, 1 x HDMI, 1 x Display Port, 1 x VGA, 1 x RS-232 Port (RJ-45), 1x SIM slot, 1 x DC Jack, 5 x Intel I225-V, 2x USB
Internal I/O ports
Internal I/O 1x mSATA,
1x M.2 for 4G/5G (B key, 3042/3052),
1 x M key M.2 for SSD (2280, PCIe 3.0 x 1),
2 x GPIO 5 Pin
LTE/4G option
Sim slot 1x
LTE option Yes, M.2 (not available in our store yet)
WiFi option
Wi-Fi option No
Power
CPU TDP 10W
OS Support
Supported operating systems pfSense® CE, OPNSense, OpenWRT and all other router systems are supported
Mechanical
Chassis Aluminium
Dimensions 440 x 130 x 45mm
Weight (router) 0.870
Weight (shipping) 1.2
Mounting option Rack brackets (included)
Cooling Actively cooled - 1x FAN
BIOS
BIOS AMI BIOS
Warranty
Warranty 12 months
Accessories and peripherals
Included Accessories 1 x TLSense router (as specified above)
1 x PSU inside of the chassis
1 x Power cord
1 x Rack brackets
1 x SATA cable
Other
Manufacturer Qotom
gross weight 1.390
