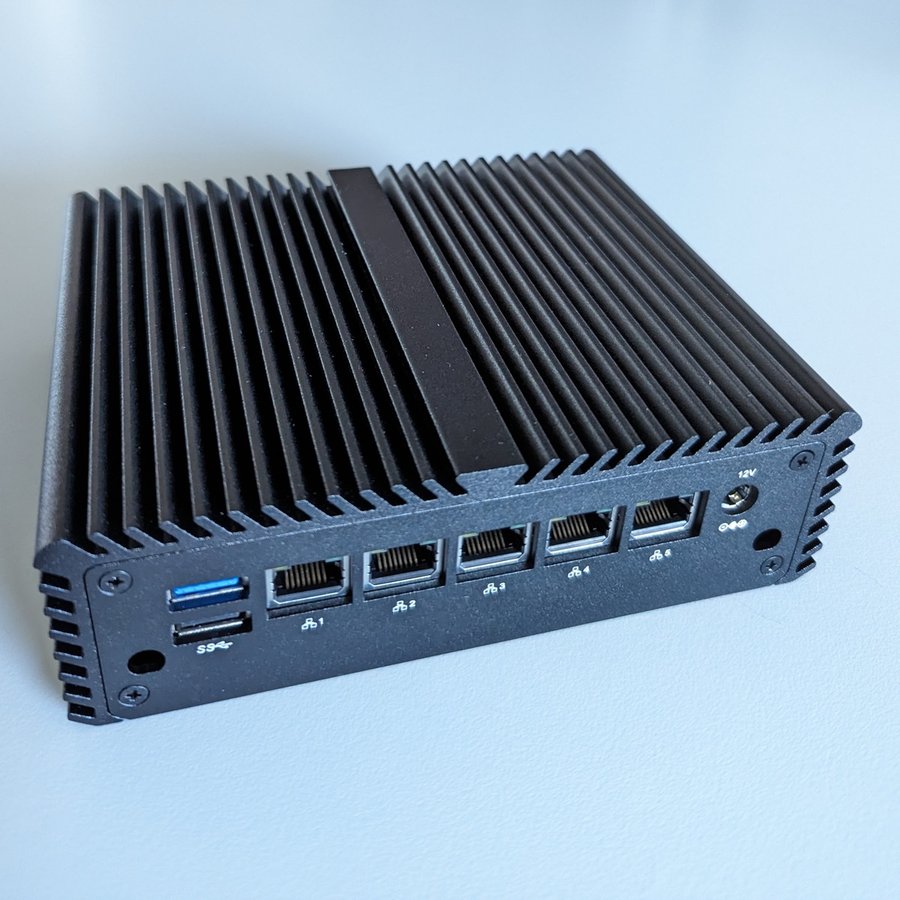

TLSense J6412: 5x 2.5Gbit LAN, J6412 CPU, 8GB RAM, 256GB SSD
- 5x 2.5Gbps NIC ports
- Powerful J6412 CPU
- 4-32GB RAM
- 16GB-1TB SSD
- Great choice for a future-proof router
3,210 SEK
(4,012.5 incl. SE 25% VAT)
Product in stock. Shipping within 48 hours.
TLSense routers are intended for customers needing high VPN throughput or IDS/IPS performance in addition to high routing performance and low latency. This model has roughly 5x better OpenVPN performance than APU.
Hardware supports pfSense®, OPNSense, OpenWRT, as well as Windows, Linux, OpenBSD, and other operating systems.
See the hardware benchmark to understand how this model compares to other routers in the webshop.
Tips:
- You can install a regular 2.5-inch SATA drive to extend storage to multiple TB.
- Use the HDMI port to enter into BIOS. (press F11 at boot)
- This model does not work with the mPCIe WiFi cards offered in the store
- This model has an mSATA port as well as NVMe port, allowing for two SSDs simultaneusly.
- Compatible with laser engraving
Customers who bought TLSense J6412, also bought
| Processor system | |
|---|---|
| CPU | Intel® Celeron® Processor J6412 |
| AES-NI | Supported |
| Graphics card | Intel® UHD Graphics for 10th Gen Intel® Processors |
| Graphics ports | 1x HDMI, 1x DP, 1x VGA |
| Memory type | DDR4 3200MHz. Up to 32G |
| Memory slots | 1 |
| Theoretical max is 8GB, but in practice the CPU supports 32GB Samsung memory and it works just fine. | |
| Network | |
|---|---|
| Ethernet ports | 5 |
| Ethernet speed | 2.5Gbps |
| Ethernet chipset | Intel I225-V rev3 |
| Storage | |
|---|---|
| Primary storage | NVMe, up to 3TB |
| 2nd storage | mSATA. Up to 512GB |
| 3rd storage | 2.5'' SATA |
| multiple storage options. NVMe, mSATA and SATA. | |
| Serial connection | |
|---|---|
| Serial port | 1 x RS-232 Port (RJ-45) |
| External ports | |
|---|---|
| External I/O | 1 x Power Button, 1 x Reset Button, 1 x Power LED, 1 x HDD LED, 1 x HDMI, 1 x Display Port, 1 x VGA, 1 x RS-232 Port (RJ-45), 1x SIM slot, 1 x DC Jack, 5 x Intel I225-V, 2x USB |
| Internal I/O ports | |
|---|---|
| Internal I/O | 1x mSATA, 1x M.2 for 4G/5G (B key, 3042/3052), 1 x M key M.2 for SSD (2280, PCIe 3.0 x 1), 2 x GPIO 5 Pin |
| LTE/4G option | |
|---|---|
| Sim slot | 1x |
| LTE option | Yes, M.2 (not available in our store yet) |
| WiFi option | |
|---|---|
| Wi-Fi option | No |
| Power | |
|---|---|
| CPU TDP | 10W |
| Idle draw | 7.9W |
| Draw at 1 core | 10.8W |
| Stress test draw | 14.1W |
| Power Adapter | 12V |
| OS Support | |
|---|---|
| Supported operating systems | pfSense® CE, OPNSense, OpenWRT and all other router systems are supported |
| Mechanical | |
|---|---|
| Chassis | Aluminium |
| Dimensions | 155 x 127 x 48mm |
| Weight (router) | 0.870 |
| Weight (shipping) | 1.2 |
| Mounting option | VESA mount (can be used to mount to a wall) |
| Cooling | Passively cooled |
| BIOS | |
|---|---|
| BIOS | AMI BIOS |
| Warranty | |
|---|---|
| Warranty | 12 months |
| Accessories and peripherals | |
|---|---|
| Included Accessories | 1 x TLSense router (as specified above) 1 x Power adapter (12V, 3A) 1 x Power cord 1 x VESA mount (can be used to mount to a wall) 1 x SATA cable |
| Other | |
|---|---|
| Manufacturer | Qotom |
| gross weight | 1.390 |
