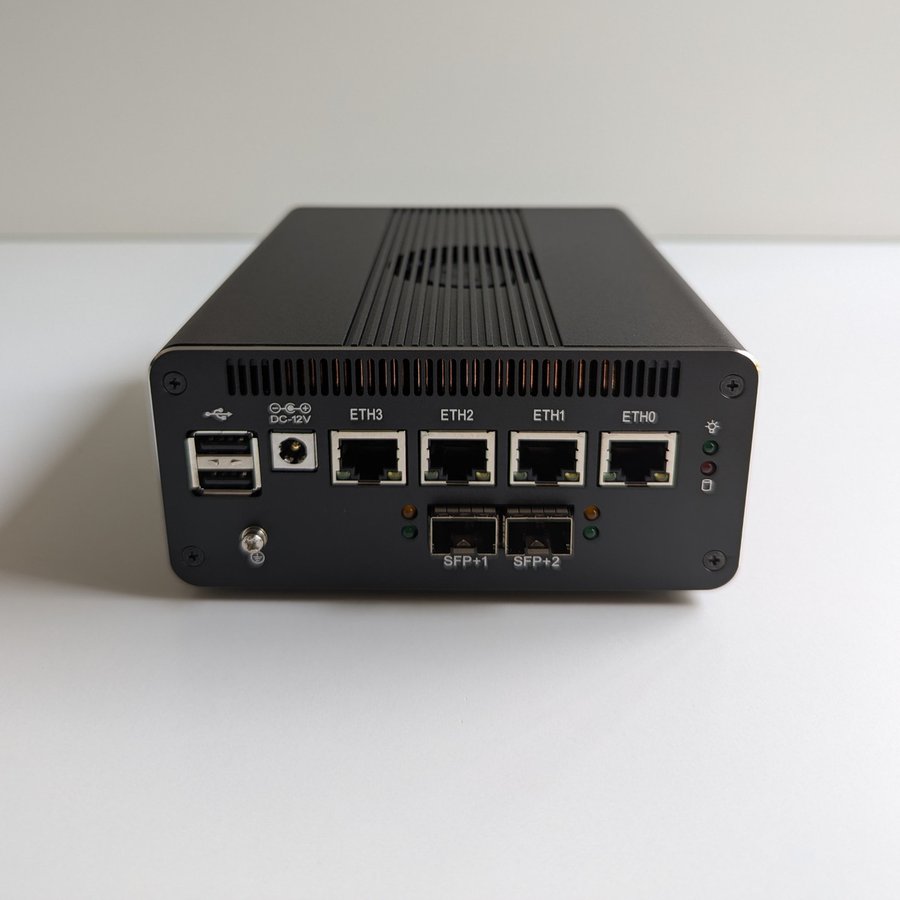

TLSense N305L6: 2x 10Gbps SFP+, 4x 2.5Gbit LAN, N305 CPU, 512GB NVMe SSD, 16GB RAM
- Powerful i3-N305 CPU - up to 3.8Ghz
- 2x SFP+ cages + 4x 2.5Gbps Intel I226-V network ports
- 128GB - 5TB NVMe SSD
- 4 - 32GB RAM
- Actively cooled - 1x FAN
6,526 SEK
(8,157.5 incl. SE 25% VAT)
Product in stock. Orders made before 17:00 are shipped on the same day within Sweden. International orders are shipped on the next business day.
This model uses the next-gen i3-N305 CPU launched in 2023 and the new, faster DDR5 memory. It's an excellent choice for a high-performance router with VPN, IDS/IPS, or similar hardware-demanding packages.
Note, this router has the new I226-V network chips, but it's supported by all major systems already (pfSense 2.7, OPNsense, OpenWRT)
Hardware supports OPNSense, OpenWRT, as well as Windows, Linux, OpenBSD, and other operating systems.
See the hardware benchmark to understand how this model compares to other routers in the webshop.
Included in the box
- 1 x TLSense router (as specified above)
- 1 x SATA cable
- 1 x Power adapter
Tips:
- You can install two NVMe SSDs if you would like to do ZFS mirroring for fault tolerance, or have more storage.
- You can also install a regular 2.5-inch SATA drive to extend storage to multiple TB.
- Use the HDMI port to enter into BIOS. (press F11 at boot)
- If you want a different amount of storage or RAM, choose the "barebones" version and buy storage and memory separately.
- Compatible with laser engraving
| Processor system | |
|---|---|
| CPU | Intel® Core™ i3-N305 Processor |
| AES-NI | Supported |
| Graphics card | Intel® UHD Graphics |
| Graphics ports | 1x DP, 1x HDMI |
| Memory type | DDR5 4800MHz. Up to 32G |
| Memory slots | 1 |
| Network | |
|---|---|
| Ethernet ports | 6 |
| Ethernet speed | 2x 10Gbps, 4x 2.5Gbps |
| Ethernet chipset | Intel I226v |
| Storage | |
|---|---|
| Primary storage | NVMe SSD. Up to 5TB (2x slots) |
| 2nd storage | 2.5'' SATA |
| 2x NVMe ports are enabled only when SATA is not in use (you can have 2x NVMe or 1x NVMe + 1x SATA) | |
| Serial connection | |
|---|---|
| Serial port | not present |
| This model doesn't have a serial port. Use the HDMI port to enter BIOS if needed. | |
| External ports | |
|---|---|
| External I/O | 1x HDMI2.0, 1x DP1.4, 2x SFP+ cages 4x i226-V 2.5G LAN, 6x USB, 1x TF card slot, 1x DC-IN |
| Internal I/O ports | |
|---|---|
| Internal I/O | 2x M.2 NVMe SSD 1x 2.5''SATA3.0 SSD |
| Power | |
|---|---|
| CPU TDP | 15W |
| Idle draw | 10.70W |
| Draw at 1 core | 18.40W |
| Stress test draw | 29.9W |
| Power Adapter | 12V |
| OS Support | |
|---|---|
| Supported operating systems | OPNSense, OpenWRT and many other router systems are supported |
| Mechanical | |
|---|---|
| Chassis | Aluminium |
| Dimensions | 160 x 125 x 51 mm |
| Mounting option | VESA mount (can be used to mount to a wall). Not included. |
| Cooling | Actively cooled |
| BIOS | |
|---|---|
| BIOS | AMI BIOS |
| Warranty | |
|---|---|
| Warranty | 24 months |
| Other | |
|---|---|
| Manufacturer | Tptn |
| gross weight | 1.700 |
