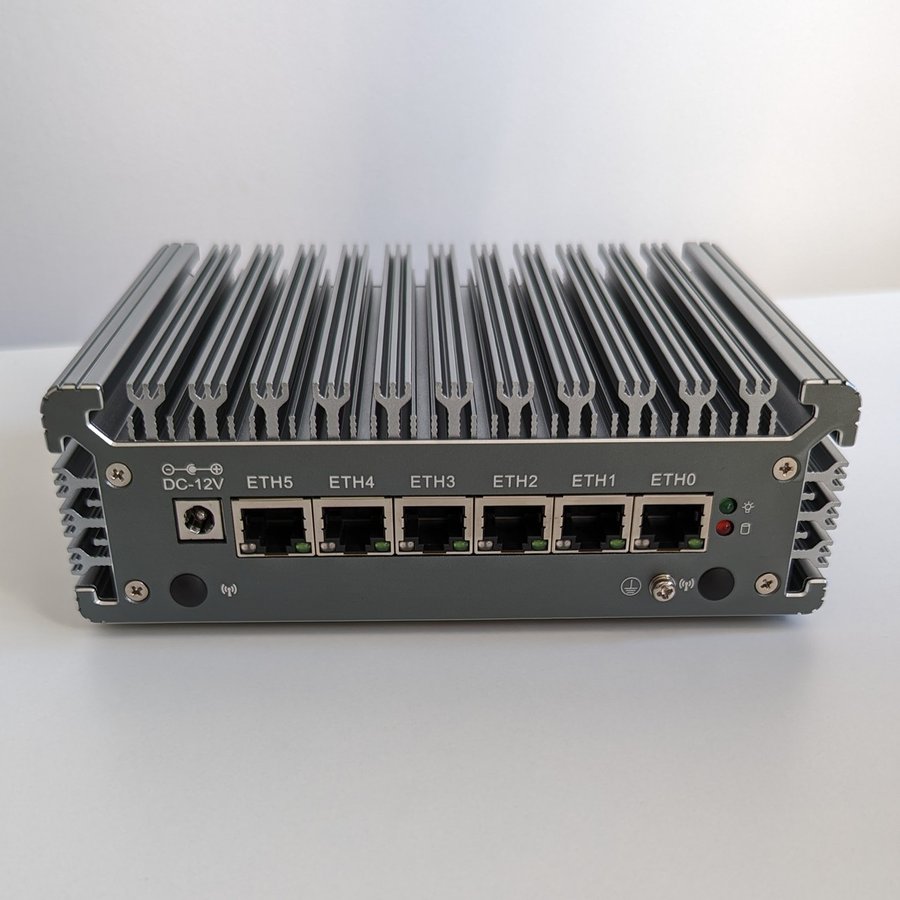

TLSense N5105L6: 6x 2.5Gbit LAN, N5105 CPU, 128GB NVMe SSD, 8GB RAM
- Powerful N5105 CPU - up to 2.9Ghz
- 6x 2.5Gbps Intel I226-V network ports
- 4 - 64GB RAM
3,908 SEK
TLSense routers are intended for customers needing high VPN throughput or IDS/IPS performance in addition to high routing performance and low latency. This model has roughly 5-6x better OpenVPN performance than APU.
Note, this router has very new I226-V network chips. Most operating systems already support it, but pfSense 2.6 CE does not. The next release of pfSense CE will support it, but until then, we suggest using OPNsense or OpenWRT.
Hardware supports OPNSense, OpenWRT, as well as Windows, Linux, OpenBSD, and other operating systems.
See the hardware benchmark to understand how this model compares to other routers in the webshop.
Nore, only the 128GB NVMe we have in stock is compatible with this model.
We are awaiting a shipment of bigger NVMes compatible with this model by the end of January.
Included in the box
- 1 x TLSense router (as specified above)
- 1 x Power adapter
- 1 x SATA cable
- 1 x VESA mount (can be used to mount to a wall)
Tips:
- You can install a regular 2.5-inch SATA drive to extend storage to multiple TB.
- Use the HDMI port to enter into BIOS. (press F11 at boot)
- If you want a different amount of storage or RAM, choose the "barebones" version and buy storage and memory separately.
Customers who bought TLSense N5105L6, also bought
| Processor system | |
|---|---|
| CPU | Intel Celeron N5105 Quad Core, Up To 2.9GHz. |
| AES-NI | Supported |
| Graphics card | Intel® UHD Graphics |
| Graphics ports | 1x HDMI |
| Memory type | DDR4 2400MHz. Up to 64G |
| Memory slots | 2 |
| Network | |
|---|---|
| Ethernet ports | 6 |
| Ethernet speed | 2.5Gbps |
| Ethernet chipset | Intel I226v |
| I226v is a new chip from Intel. Linux and OPNsense already support it. pfSense Community edition does not yet support it. pfSense plus supports it. | |
| Storage | |
|---|---|
| Primary storage | NVMe SSD. Up to 1TB |
| 2nd storage | 2.5'' SATA |
| Only the 128G NVMe we have in stock is compatible with this model. We are awaiting a shipment of bigger NVMe compatible by the end of January. |
|
| Serial connection | |
|---|---|
| Serial port | DB9F serial port |
| External ports | |
|---|---|
| External I/O | 1x HDMI 1x DB9 COM RS232 6x i226-V 2.5G LAN, 2x USB3.0 2x USB2.0 1x DC-IN |
| Internal I/O ports | |
|---|---|
| Internal I/O | 2x SO-DIMM DDR4 Slots 1x M.2 NVMe SSD 1x mPCIe with USB interface (very tight space - not enough for the LTE modules we sell in the store when the NVMe SSD is installed) 1x SIM card slot 1x 2.5''SATA3.0 SSD |
| LTE/4G option | |
|---|---|
| Sim slot | 1 |
| LTE option | Yes, but you can't use NVMe SSD because of tight space. |
| Power | |
|---|---|
| CPU TDP | 10W |
| Idle draw | 11.8W |
| Draw at 1 core | 13.1W |
| Stress test draw | 16.7W |
| Power Adapter | 12V |
| OS Support | |
|---|---|
| Supported operating systems | pfSense® CE, OPNSense, OpenWRT and all other router systems are supported |
| Mechanical | |
|---|---|
| Chassis | Aluminium |
| Dimensions | 160 x 125 x 51 mm |
| Mounting option | VESA mount (can be used to mount to a wall) |
| Cooling | Passively cooled |
| BIOS | |
|---|---|
| BIOS | AMI BIOS |
| Warranty | |
|---|---|
| Warranty | 24 months |
| Other | |
|---|---|
| Manufacturer | Tptn |
| gross weight | 1.700 |
