| Compatible parts | View compatible parts |
|---|---|
| Supported operating systems | pfSense® CE, OPNSense, OpenWRT and all other router systems are supported |
| CPU | Intel Core i5-4200U Dual Core, 4 threads, Up To 2.6GHz |
| Memory | 8GB DDR3 (1333/1600MHz) |
| Storage | 64GB mSata |
| NICs | 4 x Intel I211-AT Gigabit NIC |
| Ports | 1 x HDMI, 1 x RS-232, 4 x USB (2x 3.0, 2 x 2.0), 1 x SATA 3 - for a full size hard drive, 2 x Mini-PCIe, 4 x Intel I211-AT Gigabit NIC |
| Graphics | Intel HD Graphics 4400 |
| BIOS | AMI BIOS |
| Power consumption | ~15W |
| Cooling | Passively cooled |
| Dimensions | 187 x 115 x 52 mm |
| Weight | 1.700 kg |
| Manufacturer | Qotom |
TLSense 4200U reviews
TLSense 4200U: 4x Gigabit LAN, 4th gen i5 CPU,
4,072 SEK
(4,807.5 incl. SE 25% VAT)
Product in stock. Orders made before 17:00 are shipped on the same day within Sweden. International orders are shipped on the next business day.
TLSense routers are intended for customers needing high VPN throughput or high IDS/IPS performance in addition to hight routing performance and low latency. This model has roughly 5x better OpenVPN performance than APU.
Hardware supports pfSense®, OPNSense, OpenWRT as well as Windows, Linux, OpenBSD, and other operating systems.
See the hardware benchmark to understand how this model compares to other routers offered in the webshop.

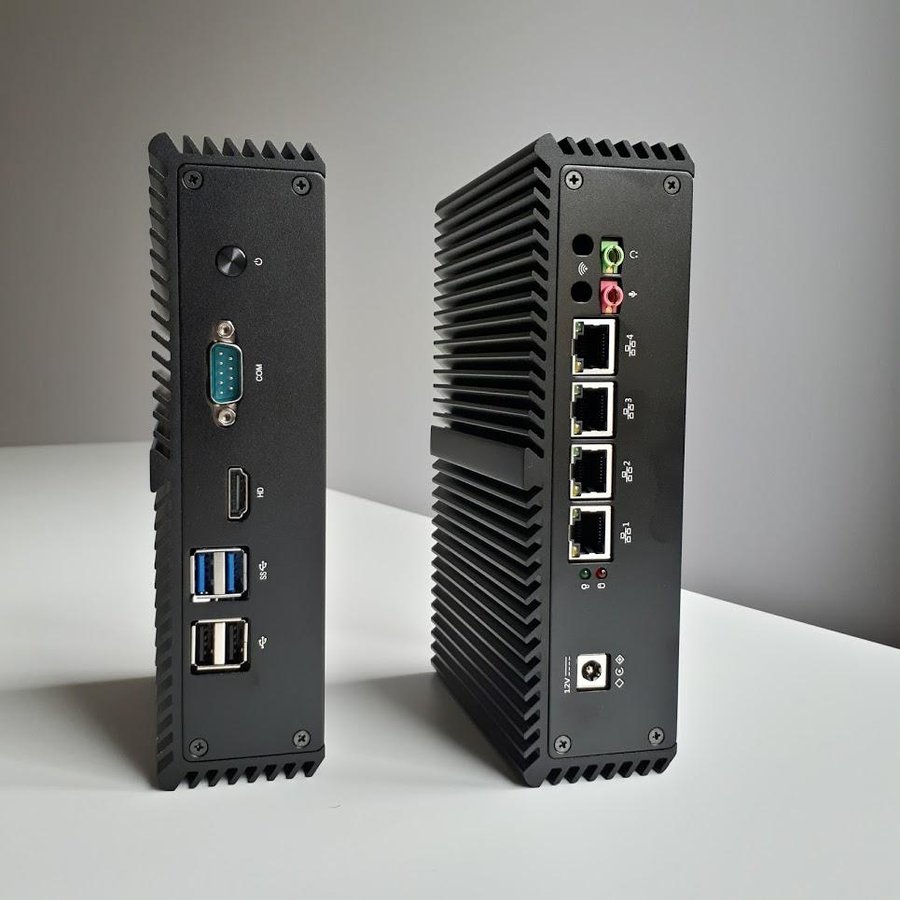

Hardware specification
- CPU: 4th generation Intel Core i5 4200U Dual Core, 4 threads, 3M Cache, Up To 2.6GHz. Full specification on Intel's website
- Network: 4 x Intel I211-AT Gigabit NIC
- Memory: Installed 8GB by default (1 slot x DDR3L SO-DIMM slot 1333/1600MHz. Max 8GB)
- Storage: mSATA. 64GB by default. Supports up to 512GB. Regular 2.5' SATA drives can be installed as well.
- Intel® HD Graphics 4400
- 1 x HDMI
- 1 x RS-232
- 4 x USB (2x 3.0, 2 x 2.0)
- 1 x SATA 3 - for a 2.5' size hard drive.
- 2 x Mini-PCIe (1x mSata, 1x miniPCIe with PCI interface.)
- CPU has AES-NI support
- It can be used as a router, server, or even a desktop computer.
Included in the box
- 1 x TLSense router (as specified above)
- 1 x Power adapter (12V, 5A)
- 1 x SATA cable (installed)
- 1 x VESA mount
Tips:
- You can install a regular 2.5 inch SATA drive to extend storage to multiple TB.
- Use the HDMI port to enter into BIOS. (press F11 at boot)
- This model works with the mPCIe WiFi cards offered in the store.
Throughput
This hardware has been internally tested at TekLager to provide clients with reliable information.
- Full 1 Gigabit routing under pfSense 2.4 (CPU load about 0.3)
- ~600 Mbit/s encrypted OpenVPN throughput under pfSense 2.4.4 using AES-GCM. Tested on NordVPN.
- 1Gbit/s encrypted WireGuard throughput under OpenWRT.
- See the hardware benchmark to understand how this model compares to other routers offered in the webshop.
Advantages over competing hardware products
- Very low power consumption - 15W
- Low total cost of ownership (no licensing fees, low power consumption)
- Completely silent. 0 dB - passively cooled. No moving parts.
- CPU has built-in encryption support (AES-NI), allowing for high VPN throughput.
- No artificial add-ons required to make your system fully functional
- No additional charges for extra features - everything is included: unlimited users, unlimited firewall rules, unlimited VPN accounts.
- No planned obsolescence - future versions of open-source operating systems will continue to work on this hardware.
