Compatible parts View compatible parts
Supported operating systems pfSense® CE, OPNSense, OpenWRT and all other router systems are supported
CPU Intel Celeron J4125 Quad Core, Up To 2.7GHz.
Memory 4GB-32GB DDR4 (2400MHz). Theoretical max is 8GB, but in practice the CPU supports 32GB and it works just fine.
Storage 128GB m.2 mSATA (additional storage via 1x 2.5'' HDD)
NICs 4 x Intel I211-AT Gigabit NIC
Ports 1 HDMI, 1 DP, 1 RS-232 via RJ45, 4 USB, 1 SATA 3.0, 1 x Mini-PCIe, 2 M.2, 4 x LAN
Graphics Intel® UHD Graphics 600
Power consumption ~10W
Cooling Passively cooled
Dimensions 144 x 126 x 42 mm
Weight 1.200 kg
Manufacturer Yling

TLSense J4125 reviews

TLSENSE_J4125V2

TLSense J4125: 4x Gigabit LAN, J4125 CPU,

3,629 SEK

(4,661.25 incl. SE 25% VAT)
3,629 SEK 2099-01-01

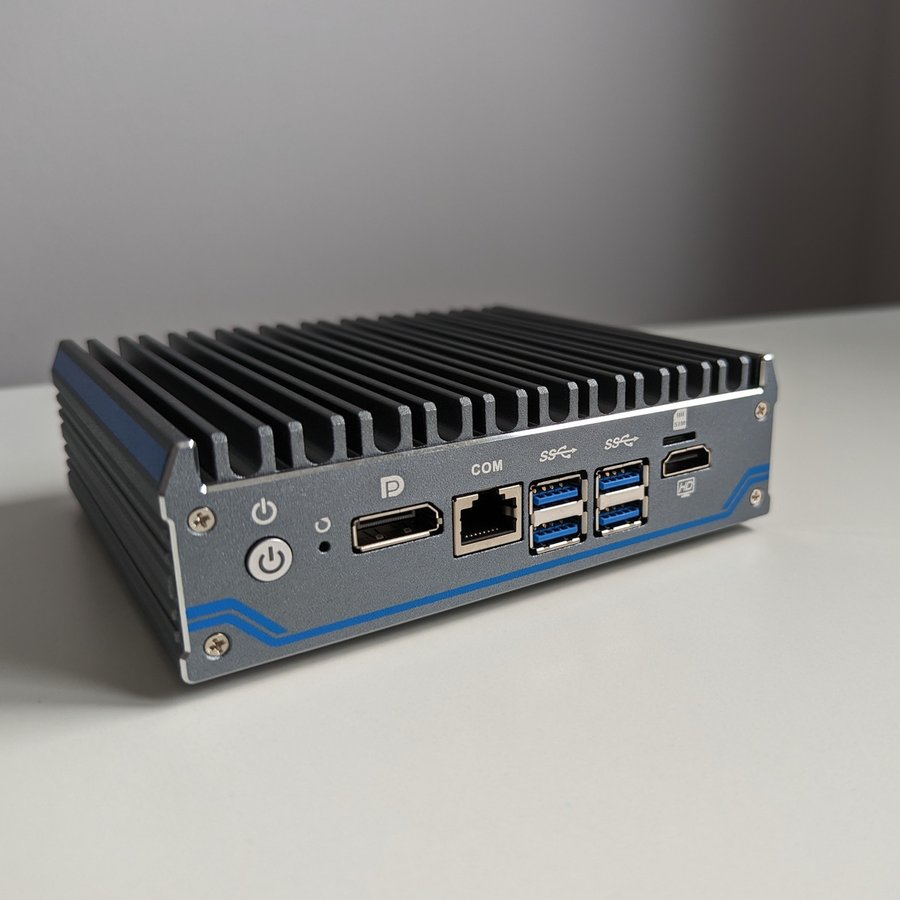

TLSense routers are intended for customers needing high VPN throughput or high IDS/IPS performance in addition to high routing performance and low latency. This model has roughly 4-5x better OpenVPN performance than APU.

Hardware supports pfSense®, OPNSense, OpenWRT, as well as Windows, Linux, OpenBSD, and other operating systems.

See the hardware benchmark to understand how this model compares to other routers offered in the webshop.

Hardware specification

  • CPU: Intel Celeron J4125 Quad-Core, 4 threads, 4 MB Cache, Up To 2.7GHz. Full specification on Intel's website
  • Network: 4 x Intel I211-AT Gigabit NIC
  • Memory: 4-32GB DDR4 (1 slot DDR4 2400MHz) Theoretically, the maximum is 8GB, but in practice, 16GB and 32GB modules work just fine.
  • Storage: 128GB mSATA SSD installed. Support for M.2 2280 M-key slot for mSATA or regular 2.5'' SATA.
  • Graphics: Intel® UHD Graphics 600
    • 1 x HDMI
    • 1 x Display port
  • 1 x serial console (via RJ45)
  • 4 x USB 3.0
  • 1 x SATA 3 - for a 2.5' size hard drive.
  • Expansion ports:
    • 1 x Mini-PCIe (mPCIe with PCI and USB interfaces. Works with WiFi cards offered in the store and 4G modems)
    • 1 x M.2 2280 M-key Slot (M.2 SATA)
    • 1 x M.2 2230 E-key Slot (M.2 WIFI, not offered in the store)
  • CPU has AES-NI support

Included in the box

  • 1 x TLSense router (as specified above)
  • 1 x Power adapter (12V, 5A)
  • 1 x VESA mount (can be used to mount to a wall)

Tips:

  • You can install a regular 2.5-inch SATA drive to extend storage to multiple TB.
  • Use the HDMI port to enter into BIOS. (press F11 at boot)
  • This model works with the mPCIe WiFi cards offered in the store (mPCIe slot on the other side of the motherboard)
  • Note, this is a v2 version of this router. (v1 had fewer USB, different serial port and onboard 8GB EMMC)
