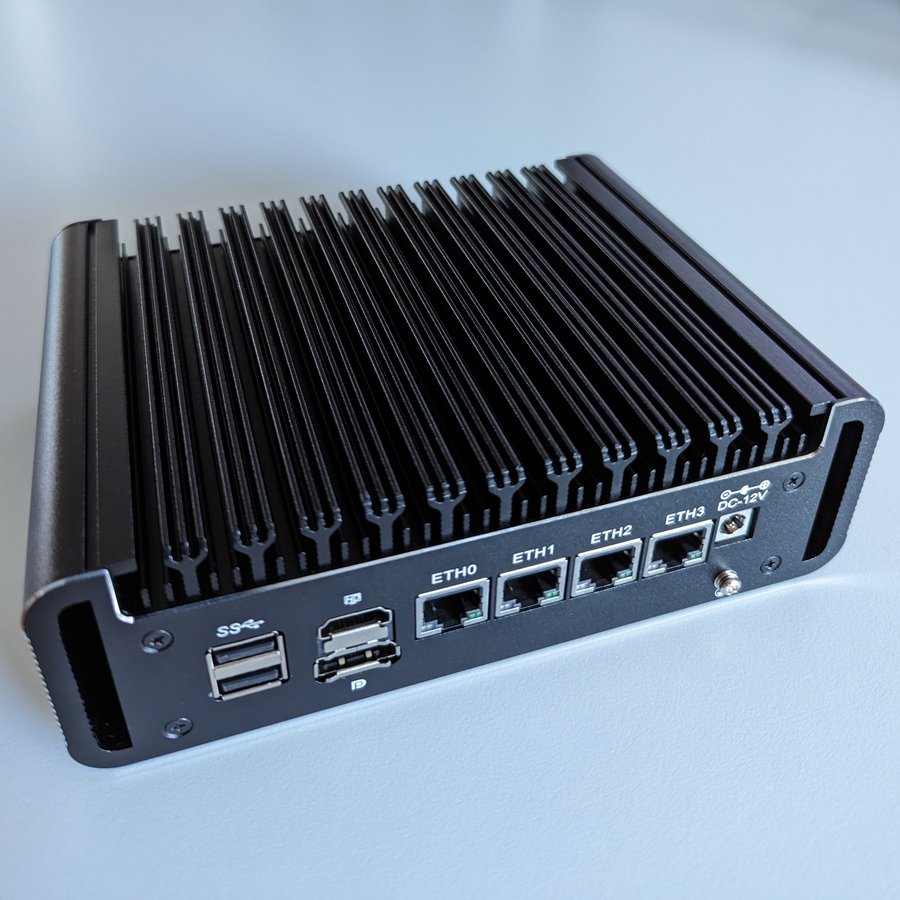

TLSense N5105L4: 4x 2.5Gbit LAN, N5105 CPU, 128GB NVMe SSD, 8GB RAM
- Powerful N5105 CPU - up to 2.9Ghz
- 4x 2.5Gbps network ports
- 128GB - 1TB NVMe SSD
- 4 - 64GB RAM
3 418 SEK
(4 272,5 incl. SE 25% VAT)
Product is currently out of stock.
Consider the N100 model instead.
TLSense routers are intended for customers needing high VPN throughput or IDS/IPS performance in addition to high routing performance and low latency. This model has roughly 5-6x better OpenVPN performance than APU.
Note, this router has very new I226-V network chips. Most operating systems already support it, but pfSense 2.6 CE does not. The next release of pfSense CE will support it, but until then, we suggest using OPNsense or OpenWRT.
Hardware supports OPNSense, OpenWRT, as well as Windows, Linux, OpenBSD, and other operating systems.
See the hardware benchmark to understand how this model compares to other routers in the webshop.
Included in the box
- 1 x TLSense router (as specified above)
- 1x SATA cable for an optional 2.5''SSD
- 1 x Power adapter
Tips:
- You can install a regular 2.5-inch SATA drive to extend storage to multiple TB.
- Use the HDMI port to enter into BIOS. (press F11 at boot)
- If you want a different amount of storage or RAM, choose the "barebones" version and buy storage and memory separately.
Customers who bought TLSense N5105L4, also bought
| Processor system | |
|---|---|
| CPU | Intel Celeron N5105 Quad Core, Up To 2.9GHz. |
| AES-NI | Supported |
| Graphics card | Intel® UHD Graphics |
| Graphics ports | 1x DP, 1x HDMI |
| Memory type | DDR4 2400MHz. Up to 64G |
| Memory slots | 2 |
| Network | |
|---|---|
| Ethernet ports | 4 |
| Ethernet speed | 2.5Gbps |
| Ethernet chipset | Intel I226v |
| I226v is a new chip from Intel. | |
| Storage | |
|---|---|
| Primary storage | NVMe SSD. Up to 1TB |
| 2nd storage | 2.5'' SATA (cable included) |
| Serial connection | |
|---|---|
| Serial port | not present |
| This model doesn't have a serial port. Use the HDMI port to enter BIOS if needed. | |
| External ports | |
|---|---|
| External I/O | 1x HDMI2.0, 1x DP1.4, 1x Type-C, 4x i226-V 2.5G LAN, 2x USB3.0, 2x USB2.0, 1x TF card slot, 1x DC-IN |
| Internal I/O ports | |
|---|---|
| Internal I/O | 2x SO-DIMM DDR4 Slot, 1x M.2 NVMe SSD 1x 2.5''SATA3.0 SSD |
| Power | |
|---|---|
| CPU TDP | 10W |
| Idle draw | 9.6W |
| Draw at 1 core | 13.3W |
| Stress test draw | 16.9W |
| Power Adapter | 12V |
| OS Support | |
|---|---|
| Supported operating systems | OPNSense, OpenWRT and many other router systems are supported |
| Mechanical | |
|---|---|
| Chassis | Aluminium |
| Dimensions | 160 x 125 x 51 mm |
| Mounting option | VESA mount (can be used to mount to a wall). Not included. |
| Cooling | Passively cooled |
| BIOS | |
|---|---|
| BIOS | AMI BIOS |
| Warranty | |
|---|---|
| Warranty | 24 months |
| Other | |
|---|---|
| Manufacturer | Tptn |
| gross weight | 1.700 |
