TLSENSE-i5-7200U

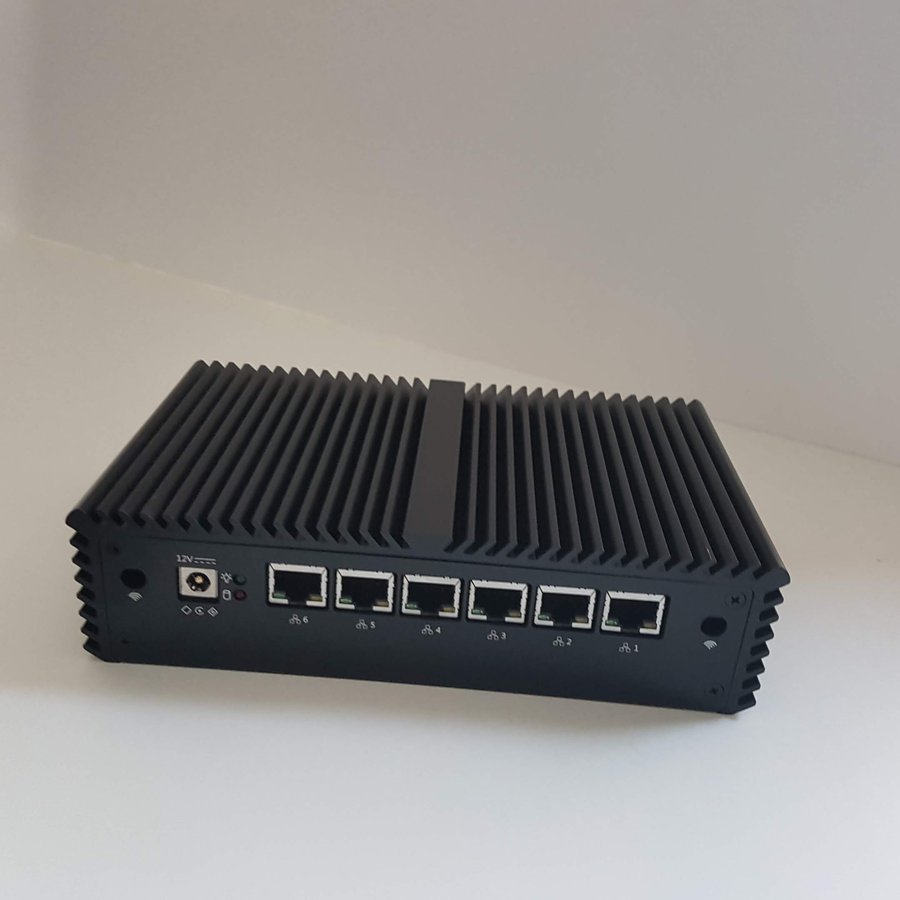

TLSense 7200U: 6x Gigabit LAN, 7th gen i5 CPU, 128GB SSD, 16GB RAM

6,196 SEK

(7,745 incl. SE 25% VAT)
6,196 SEK 2099-01-01
Next delivery uncertain. Consider TLSense 8550U instead.

TLSense routers are intended for customers needing high VPN throughput or high IDS/IPS performance in addition to hight routing performance and low latency. This model has roughly 9x better OpenVPN performance than APU.

Hardware supports pfSense®, OPNSense, OpenWRT as well as Windows, Linux, OpenBSD, and other operating systems.

See the hardware benchmark to understand how this model compares to other routers offered in the webshop.

Hardware specification

  • CPU: 7th generation Intel Core i5 7200U Dual Core, 4 threads, Up To 3.1GHz. Full specification on Intel's website
  • Network: 6 x Intel I211-AT Gigabit NIC
  • Memory: Installed 16GB DDR4 (1 slot x DDR4-2133. Max 16GB)
  • Storage: mSATA. 128GB installed. Supports up to 480GB. Regular 2.5' SATA drives can be installed as well.
  • Intel® HD Graphics 620
  • 1 x HDMI
  • 1 x RS-232
  • 4 x USB (2x 3.0, 2 x 2.0)
  • 1 x SATA 3 - for a 2.5' size hard drive.
  • 2 x Mini-PCIe (1x mSata, 1x miniPCIe with USB interface - does not work with WiFi)
  • CPU has AES-NI support
  • It can be used as a router, server, or even a desktop computer.

Included in the box

  • 1 x TLSense router (as specified above)
  • 1 x Power adapter (12V, 5A)
  • 1 x SATA cable (installed)
  • 1 x VESA mount

Tips:

  • You can install a regular 2.5 inch SATA drive to extend storage to multiple TB.
  • Use the HDMI port to enter into BIOS. (press F11 at boot)
  • Note: This model does not work with the mPCIe WiFi cards offered in the store.

Throughput

This hardware has been internally tested at TekLager to provide clients with reliable information.

  • Full 1 Gigabit routing under pfSense 2.4 (CPU load about 0.3)
  • 1 Gbit/s encrypted OpenVPN throughput under pfSense 2.4.4 using AES-GCM.
  • 1Gbit/s encrypted WireGuard throughput under OpenWRT.
  • See the hardware benchmark to understand how this model compares to other routers offered in the webshop.

Advantages over competing hardware products

  • Very low power consumption - 15W
  • Low total cost of ownership (no licensing fees, low power consumption)
  • Completely silent. 0 dB - passively cooled. No moving parts.
  • CPU has built-in encryption support (AES-NI), allowing for high VPN throughput.
  • No artificial add-ons required to make your system fully functional
  • No additional charges for extra features - everything is included: unlimited users, unlimited firewall rules, unlimited VPN accounts.
  • No planned obsolescence - future versions of open-source operating systems will continue to work on this hardware.
Processor system
CPU Intel Core i5-7200U Dual Core, 4 threads, Up To 3.1GHz
OS Support
Supported operating systems pfSense® CE, OPNSense, OpenWRT and all other router systems are supported
Mechanical
Dimensions 187 x 115 x 52 mm
Cooling Passively cooled
Other
Other Not compatible with WiFi cards sold in the store
Manufacturer Qotom
gross weight 1.700
Memory 16GB installed. 32GB max (DDR4 2133MHz)
Storage 128GB mSata SSD
Ports 1 x HDMI, 1 x RS-232, 4 x USB (2x 3.0, 2 x 2.0), 1 x SATA 3 - for a full size hard drive, 2 x Mini-PCIe, 6 x Intel I211-AT Gigabit NIC
Graphics Intel® HD Graphics 520
Power consumption ~15W

Accessories for TLSense 7200U

View parts compatible with this router



TLSense 7200U reviews
