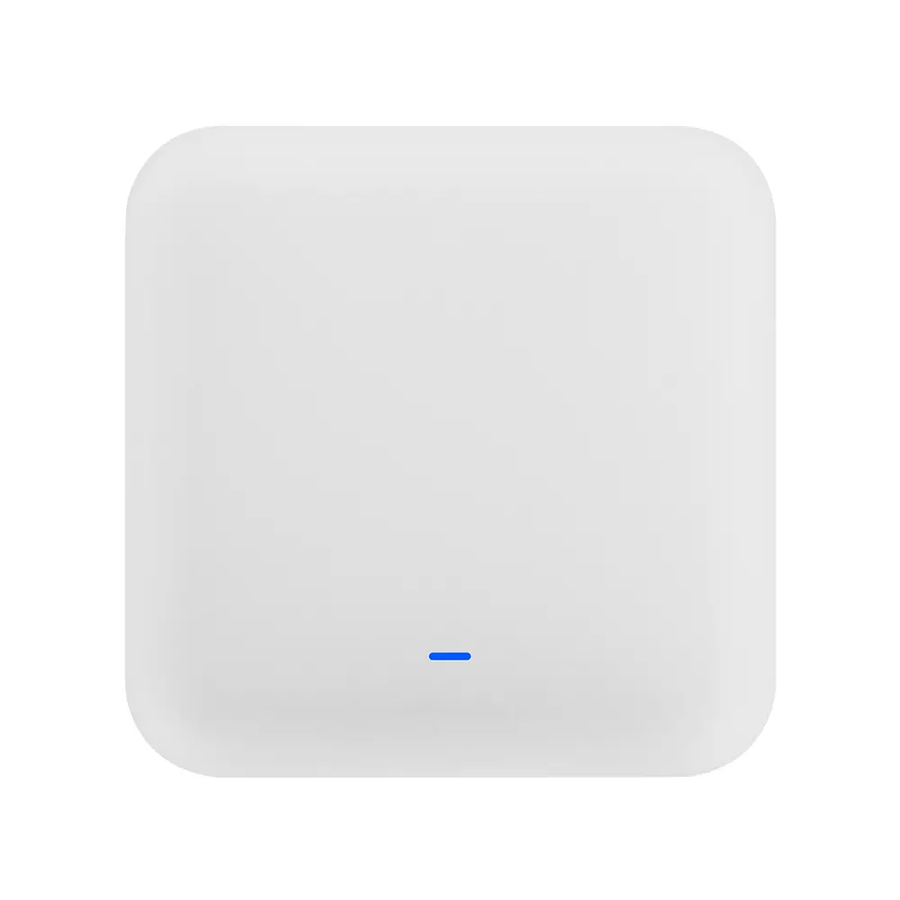

AX820-WRT 11ax 1800Mbps OpenWRT Ceiling Wireless Access Point, no external power adapter
- 11ax Wi-Fi6 standard, dual band, 1800Mbps data rate
- Fully open-source, including BIOS.
- IEEE 802.3af/at PoE support
504 SEK
(630 incl. SE 25% VAT)
Product in stock. Orders made before 17:00 are shipped on the same day within Sweden. International orders are shipped on the next business day.
AX820 is an AX (WiFi 6), dual-band, open-source Wireless Access Point running the latest OpenWRT operating system.
It exposes two networks, 2.4 GHz and 5 GHz, both operating in AX (WiFi-6) mode. It supports MU-MIMO, Wave2.0, OFDMA, Seamless Fast Roaming.
In our tests, it delivers a full gigabit data transfer in AX mode.
This device can be powered in two different ways:
- Using a POE-enabled network switch or
- Standard 12V power adapter.
The POE switch such as TSW202 is more convenient because there's only one cable going to the device, so it's easier to mount it on a wall or ceiling.
Customers who bought AX820 Access Point, also bought
| Processor system | |
|---|---|
| Chipset/CPU | MT7621AT+MT7905N+MT7975DN |
| 880MHz CPU | |
| Memory | |
|---|---|
| Memory type | DDR3 |
| Memory size | 256MB |
| Storage | |
|---|---|
| Storage | SPI NOR 16MB |
| Enough for OpenWRT and several packages | |
| WiFi | |
|---|---|
| WiFi standard | 802.11ax/ac/b/g/n |
| WiFi 2.4G frequency | 2.4GHz – 2.484GHz |
| WiFi 2.4G standard | 802.11b/g/n/ac/ax |
| WiFi 5.0G frequency | 5.150GHz – 5.850GHz |
| WiFi 5.0G standard | 802.11 a/n/ac/ax |
| WiFi Antennas | Internal 4dBi MIMO Antenna |
| WiFi Data Rate (theoretical) | 1800Mbps |
| WiFi RF power | ≤ 18dBm |
| LEDs | Sys and WiFi, WAN, LAN |
| Network | |
|---|---|
| Ethernet ports | 2 |
| Ethernet speed | 1Gbps |
| Ethernet chipset | Mediatek |
| Typically both ports are configured as LAN, although different configurations are possible. | |
| Serial connection | |
|---|---|
| Serial port | 4-pin serial port on the motherboard |
| It's possible to access the U-Boot bios through the serial connection | |
| External ports | |
|---|---|
| External I/O | 2x 1Gbps RJ45 WAN+LAN 1x reset button (press 10 seconds to revert to default setting) |
| Power | |
|---|---|
| Stress test draw | ≤ 15W |
| Maximum 15W power draw | |
| OS Support | |
|---|---|
| Supported operating systems | OpenWRT 23.05 + |
| Mechanical | |
|---|---|
| Chassis | Plastic chassis |
| Dimensions | 168x168.32 |
| Mounting option | Wall/Ceiling mount (included) |
| Cooling | passive |
| BIOS | |
|---|---|
| BIOS | U-boot (open source) |
| Warranty | |
|---|---|
| Warranty | 24 months |
| Accessories and peripherals | |
|---|---|
| Included Accessories | Wall/ceiling mount |
| Other | |
|---|---|
| Manufacturer | Yuncore |
| gross weight | 0.400 |
