AX880-WRT 11ax 3657Mbps Industrial OpenWRT Wireless Access Point, no external power adapter
- 11ax Wi-Fi6 standard, dual band, 3657Mbps data rate
- Fully open-source, including BIOS.
- IEEE 802.3af/at PoE support
1,712 SEK
(2,140 incl. SE 25% VAT)
Product in stock. Orders made before 17:00 are shipped on the same day within Sweden. International orders are shipped on the next business day.

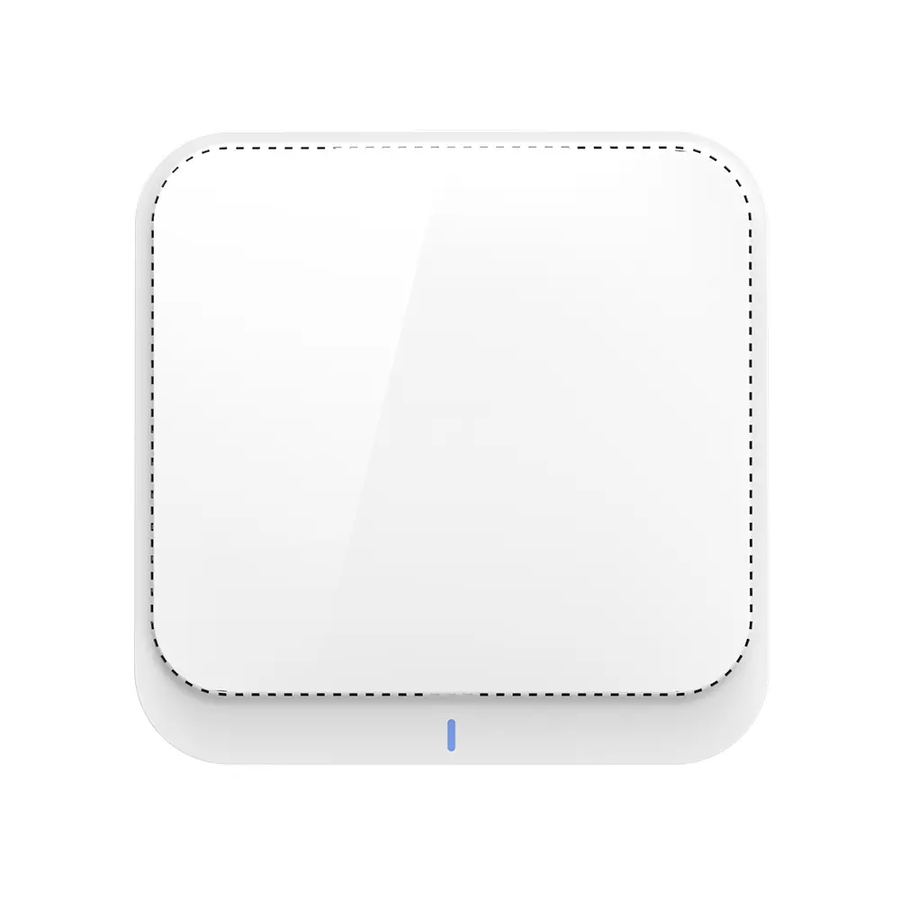

AX880 is an Industrial AX (WiFi 6), dual-band, open-source Wireless Access Point based on the latest OpenWRT system compiled for this hardware. It's intended for environments requiring many concurrent clients, such as public spaces. Of course, those who don't like to compromise can use it at home or in an office.
It supports MU-MIMO, Wave2.0, OFDMA, Seamless Roaming, 160M bandwidth.
In our tests, it delivers a full gigabit data transfer in AX mode.
This device can be powered in two different ways:
- Using a POE-enabled network switch or
- Standard 12V power adapter.
The POE switch such as TSW202 is more convenient because there's only one cable going to the device, so it's easier to mount it on a wall or ceiling.
Customers who bought AX880 Access Point, also bought
| Processor system | |
|---|---|
| Chipset/CPU | IPQ8072A +QCN5054+QCN5024+QCA8081*2 |
| 4x Arm® Cortex®-A53 Processor, up to 2 GHz | |
| Memory | |
|---|---|
| Memory type | DDR4 |
| Memory size | 1GB |
| Storage | |
|---|---|
| Storage | NOR-8MB AND NAND-256MB |
| Plenty of space for OpenWRT and many packages | |
| WiFi | |
|---|---|
| WiFi standard | 802.11 ax/ac/b/g/n |
| WiFi 2.4G frequency | 2.4GHz – 2.484GHz |
| WiFi 2.4G standard | 802.11 b/g/n/ac/ax |
| WiFi 5.0G frequency | 5.150GHz – 5.850GHz |
| WiFi 5.0G standard | 802.11 a/n/ac/ax |
| WiFi Antennas | Internal 4*3dBi omni antennas |
| WiFi Data Rate (theoretical) | 3657Mbps（2.4G: 1182Mbps (11ax 4×4); 5.8G: 2475Mbps (11ax 4×4)) |
| WiFi RF power | 2.4g ≤ 22dBm ; 5.8g ≤ 22dBm |
| LEDs | System, WiFi, WAN, LAN |
| Network | |
|---|---|
| Ethernet ports | 2 |
| Ethernet speed | 2.5Gbps |
| Ethernet chipset | Qualcomm |
| Typically both ports are configured as LAN, although different configurations are possible. | |
| Serial connection | |
|---|---|
| Serial port | 4-pin serial port on the motherboard |
| It's possible to access the U-Boot bios through the serial connection | |
| External ports | |
|---|---|
| External I/O | 2x 2.5Gbps RJ45 WAN+LAN 1x reset button (press 10 seconds to revert to default setting) 1x DC Port |
| Power | |
|---|---|
| POE support | 48V (IEEE 802.3at+) |
| Stress test draw | ≤ 35W |
| Power Adapter | 12V, 2A (optional) |
| Maximum 35W power draw | |
| OS Support | |
|---|---|
| Supported operating systems | OpenWRT 23.05 + |
| Mechanical | |
|---|---|
| Chassis | Plastic front, aluminium bottom. |
| Dimensions | 198 x 198 x 41 |
| Mounting option | Wall/Ceiling mount (included) |
| Cooling | passive |
| BIOS | |
|---|---|
| BIOS | U-boot (open source) |
| Warranty | |
|---|---|
| Warranty | 24 months |
| Accessories and peripherals | |
|---|---|
| Included Accessories | Wall/ceiling mount |
| Other | |
|---|---|
| Manufacturer | Yuncore |
| gross weight | 1.200 |
