|Compatible parts||View compatible parts|
|Supported operating systems||pfSense® CE, OPNSense, OpenWRT and all other router systems are supported|
|CPU||AMD Embedded G series GX-412TC, 1.0Ghz/1.4Ghz quad Jaguar core with 64 bit and AES-NI support, 32K data + 32K instruction cache per core, shared 2MB L2 cache.|
|Memory||4 GB DDR3-1333 DRAM|
|Storage||16GB SSD (possible to upgrade to 60GB)|
|NICs||3 x Gbit (Intel i211AT)|
|Ports||DB9 serial port, 2 USB 3.0 external, 2 USB 2.0 internal, three front panel LEDs, pushbutton, 2 miniPCI express (one with SIM socket), LPC bus, GPIO header, I2C bus, COM2 (3.3V RXD / TXD)|
|Power consumption||6W idle, 12W under full load|
|Dimensions||16.8 cm X 15.7 cm|
|Other||can connect 1x WiFi card and 2x LTE modems|
APU3D4 Router reviews
APU3D4 3x Gigabit LAN, Quad Core CPU, 16GB SSD, 4GB RAM
APU2, APU3, and APU4 are the most popular routers we sell because they are open-source, achieve excellent performance, and are rock solid.
The router is shipped assembled, pre-configured, optimized, and ready to use (unless you choose otherwise).
APU router is the most open-source network device you can buy. It comes with open-source BIOS, open-source operating system of your choice, and open hardware schematics. It's not locked down in any way.
APU2, APU3, and APU4 are very similar to each other and achieve roughly the same performance. You can see the detailed comparison here. If you aren't sure which one to choose, get APU2E4.
Hardware supports OPNsense, pfSense, Open-WRT, *BSD, and a number of other operating systems.
Things to consider:
- APU2 supports two WiFi mPCIe cards. APU3 and APU4 support one.
- APU2E4 has intel i210-AT network interfaces (theoretically more performant - I haven't noticed the difference)
- APU2E0 is a stripped-down version of APU2E4. It has 2GB of RAM instead of 4, 2 LAN ports instead of 3, and no internal SATA port.
- You can connect a 2.5' SATA drive to an internal SATA port to expand storage up to 1TB+. (not on APU2E0)
- APU3 and APU4 are optimized for LTE connectivity, APU2 isn't. You can connect one or two mPCIe LTE modems to APU3 and APU4 to get WAN over 3G/4G.
- Detailed comparison of APU2, APU3, APU4.
- All LAN ports have real interfaces with separate chips. Those are real router ports, not switch ports.
Advantages over competing hardware products
- Completely silent. 0 dB - passively cooled. No moving parts.
- Small: 16.8 cm X 15.7 cm
- Very low power consumption - ~6W.
- Very high throughput - 1 Gbit on pfSense, OpenWRT and IPFire.
- CPU has built-in encryption support (AES-NI), allowing for high VPN throughput.

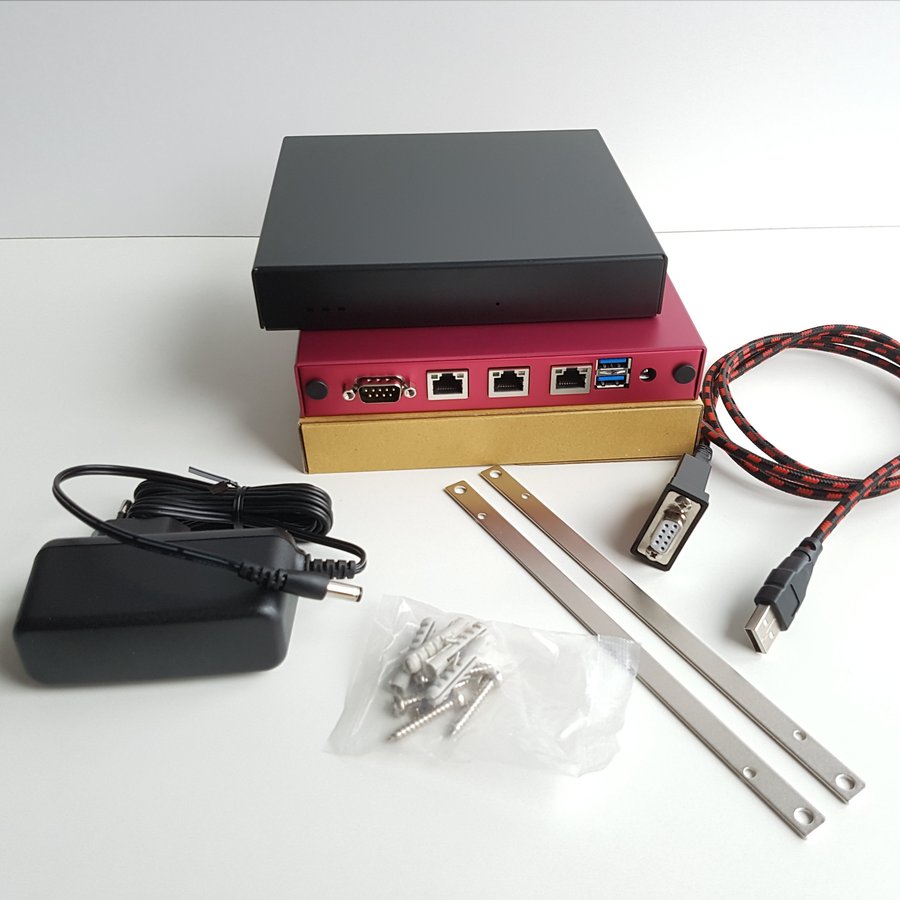

- APU3D4 Board (4 core, 1Ghz/1.4Ghz CPU, 4GB ECC DDR3-1333 DRAM, 3 x Gbit ports)
- 16GB SSD (use router configurator to change to a larger size)
- Chassis designed for this board
- Power adapter (small)
- Wall mount
- Serial to USB cable
Advantages over the proprietary solutions:
- Low total cost of ownership
- No artificial add-ons required to make your system fully functional
- No additional charges for extra features - everything is included. unlimited users, unlimited firewall rules. unlimited VPN accounts.
- Low power consumption. It won't show on your electric bill.
- No moving parts. This system is designed to last decades.
Router/Firewall comes assembled, pre-configured, and ready to use.
