Manufacturer PC Engines
Weight 0.238 kg

APU6B4 motherboard reviews

APU6B4_MOTHERBOARD

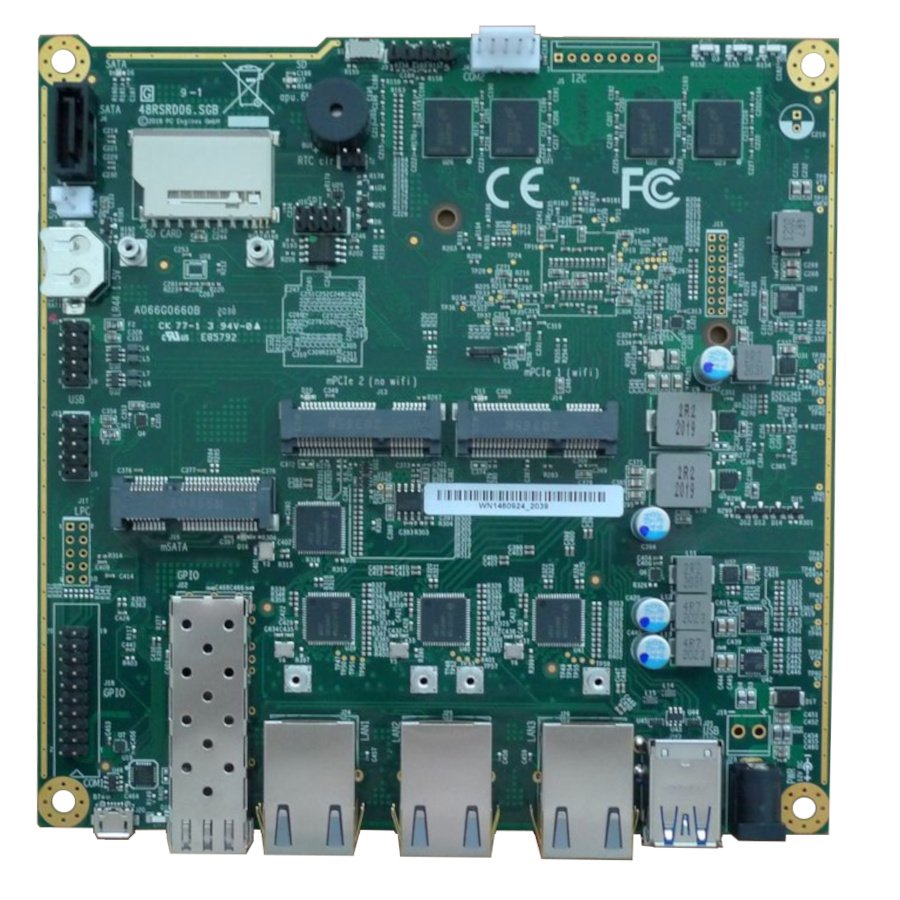

PC Engines APU6B4: 1 SFP, 3 LAN, quad core CPU, 4 GB RAM

1,907 SEK

(2,383.75 incl. SE 25% VAT)
1,907 SEK 2099-01-01

This board version is targeted at applications that require an optical SFP port.

APU6B4 board specification

  • CPU: AMD G series GX-412TC, 1.0/1.4Ghz, quad Jaguar core with 64 bit and AES-NI support, 32K data + 32K instruction cache per core, shared 2MB L2 cache.
  • DRAM: 4 GB DDR3-1333 DRAM
  • Storage: Boot from SD card, external USB, or m-SATA SSD. 1 SATA + power connector. mSATA is shared with miniPCI express.
  • 12V DC, about 6 to 12W depending on CPU load. Jack = 2.5 mm, center positive
  • Connectivity: 1 SFP port (Gigabit, Intel i210IS), 3 Gigabit Ethernet channels (Intel i211AT)
  • I/O: microUSB serial port, 2 USB 3.0 external + 4 USB 2.0 internal, three front panel LEDs, pushbutton
  • Expansion: 3 miniPCI express (J14 USB or mSATA, with SIM; J15 USB only, with SIM; J16: full miniPCI express, but no SIM, intended for wifi). GPIO header, optional I2C bus, COM2 (3.3V RXD / TXD).
  • Board size: 6 x 6" (152.4 x 152.4 mm)
  • Firmware: coreboot
  • Cooling: Conductive cooling from the CPU to the enclosure using a 3 mm alu heat spreader (included).

APU6 board is the same as APU3, with the exception of the SFP slot.

See the comparison between APU2, APU3 and APU4 boards for more details.
