|Compatible parts||View compatible parts|
|Supported operating systems||RutOS - system based on OpenWRT|
|CPU||ARM Cortex-A7 1.2 GHz / ARMv7 Processor rev 5 (v7l) / MDM9207|
|Storage||512 MB (about 85 MB free)|
|NICs||1x NIC (AR8033-AL1A-R)|
|Ports||1 NIC, 1 USB, 1 SMA, 1 SIM slot,|
|Power consumption||below 5 W|
|Cooling||passive, industrial chassis.|
|Dimensions||74.5 x 25 x 64.4 mm|
TRB140 internet gateway reviews

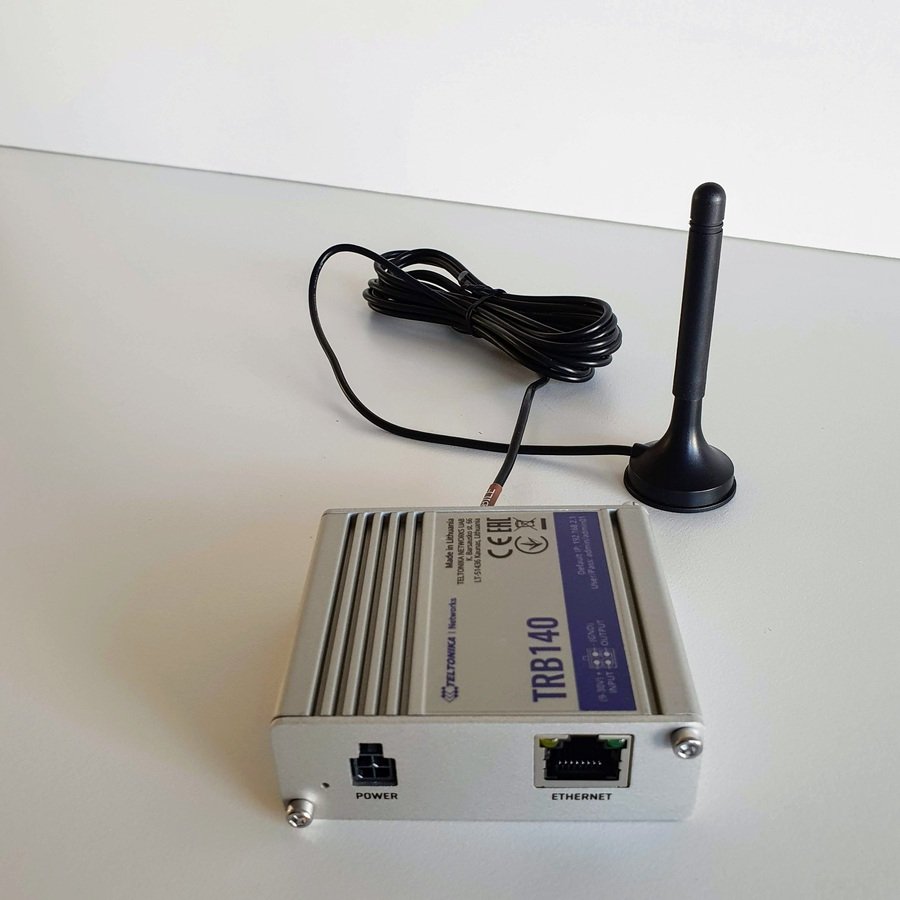

TRB140 mobile LTE internet gateway/modem.
TRB140 is an LTE gateway ideal for providing a mobile failover WAN connection.
Note, this device is not a router - it's a mobile modem with a single LAN port. You can connect it to the main router to create a primary or secondary (failover) WAN connection. It can also be used to provide an internet connection to IoT devices.
Generally this device is used in combination with one of the TLsense routers.
TRB140 is a tiny, lightweight, energy-efficient LTE Cat 4 mobile gateway.
This device works in Europe. It won't work in the USA.
Supported LTE Frequency:
- 4G (LTE-FDD): B1, B3, B7, B8, B20, B28A
- 4G (LTE-TDD): B38, B40, B41
- 3G: B1, B8
- 2G: B3, B8
Included in the box:
- 4.5 W PSU power adapter
- 1 x LTE antenna (magnetic mount, SMA male, 3 m cable)
- Micro-USB cable (0.8 m)
- 1 x hex key
- LAN cable
- Quick Start Guide
This device is "half open-source". The operating system is based on OpenWRT, so you can gain access via SSH, but you won't be able to install a different OS.
In our tests, we achieved about 24 Mbit/s download and 10 Mbit/s upload throughput.
For higher throughput, consider RUTX11 or RUTX12.
Watch getting started video: https://www.youtube.com/watch?v=Os4L3wDvAbY
More detailed specification on manufacturer's website: https://teltonika-networks.com/product/trb140/
